MtM Toolbox

The MtM toolbox is a collection of functions designed to simplify Plotting, Image Processing, Processing 3D Slicer segmentation volumes, working with Surface Meshes, and several other utility actions. These functions can be found in the MtMresources/toolbox folder.

The MtM toolbox folder must be added to search path for these functions to work

Add the MtMresources/toolbox folder to the MATLAB search path as described on the setup page.

Most MtM toolbox functions are prefaced with mm

You can get a quick summary of the available course functions in the MtMtoolbox by entering help MtMtoolbox in the command window.

Get the full help for any function

Enter help and the function name in the command window (for example, help mmSurfaceDistance) to see all of its inputs, options, and examples. The help text in MATLAB is always the most up to date.

Which function do I need?

I want to...	Function	Used in
Read the segment names and colors of a Slicer file	mmGetSlicerSegmentInfo	SLCR1–7
Read every Slicer file in a folder (a whole class)	mmGetSlicerSegmentInfoAll	SLCR5, SLCR6
Get the mask of one segment (e.g., the aorta)	mmGetMedicalVolumeSegment	SLCR2–7
Fix a segmentation that is one slice off from its CT	mmMatchVolumeGeometry	SLCR2, SLCR4
Plot every segment as a 3D surface	mmPlotAllSeg	SLCR1, SLCR4
Plot one mask as a 3D surface	mmPlotMask2Surface	SLCR1–5
Show where two segmentations of the same structure differ	mmSurfaceDistance	SLCR2, SLCR3, SLCR5
Compare a left organ to the right one	mmMirrorAlign	SLCR5
Measure the diameter of a bone or vessel along its length	mmCrossSectionProfile	SLCR4, SLCR6
Segment a CT scan automatically	mmTotalSegmentator	SLCR7
Segment a brain MRI automatically	mmSynthSeg2	SynthSeg_Brain_Segmentation
Remove the skull from a brain MRI	mmSkullStrip	SynthSeg_Tumor_MATLAB
Save a volume or segmentation that Slicer can open	mmWriteNRRD
Plot data as a box chart with the points on top	mmBoxSwarm	SLCR5–7

Plotting Functions

mmShowHist

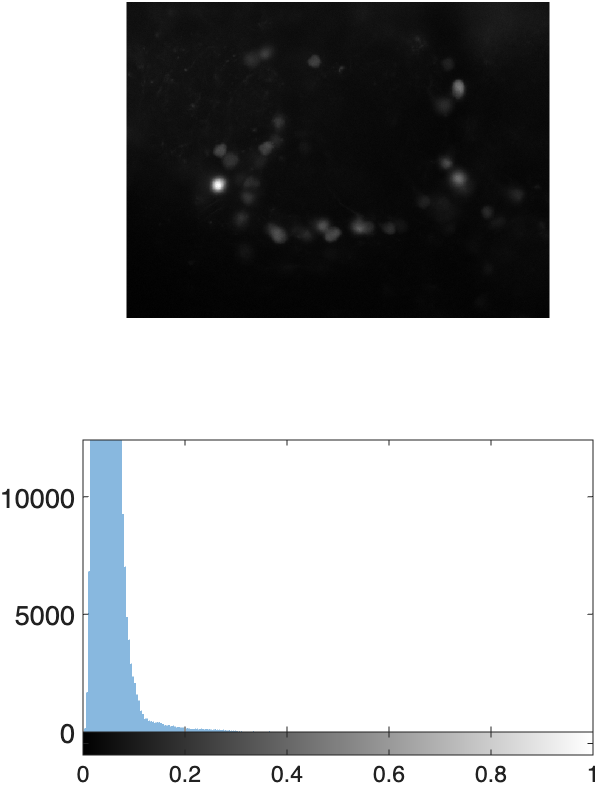

Tiles an image with its histogram in one figure. Image is display above the histogram (two row tiles per image). Corrects MATLAB inexplicable inability to pair nexttile with imhist by using subplot for tiling.

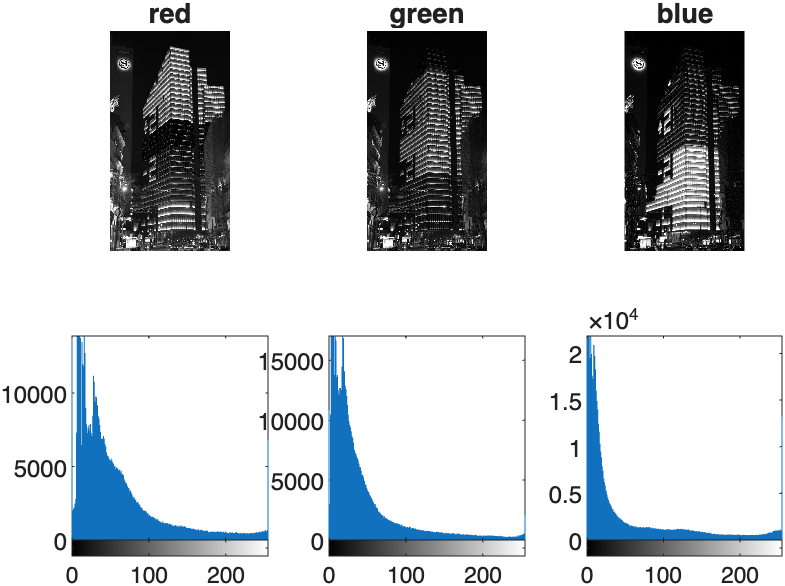

If you input an RGB image, this function will automatically index out the channels and display the histogram for each channel.

INPUTS

Required:

• img: an image matrix

Optional:

• col (default = 1): current column position
• num_cols (default = 1): total number of columns in the figure.
• title_str (default = empty): a string to title the image
• add_color (logical = false): if true add color

mmShowHist(img) — displays image above its histogram
mmShowHist(img, 2, 6) - displays the image and the histogram in the 2nd
column of a six-column figure

mmShowBurnImage

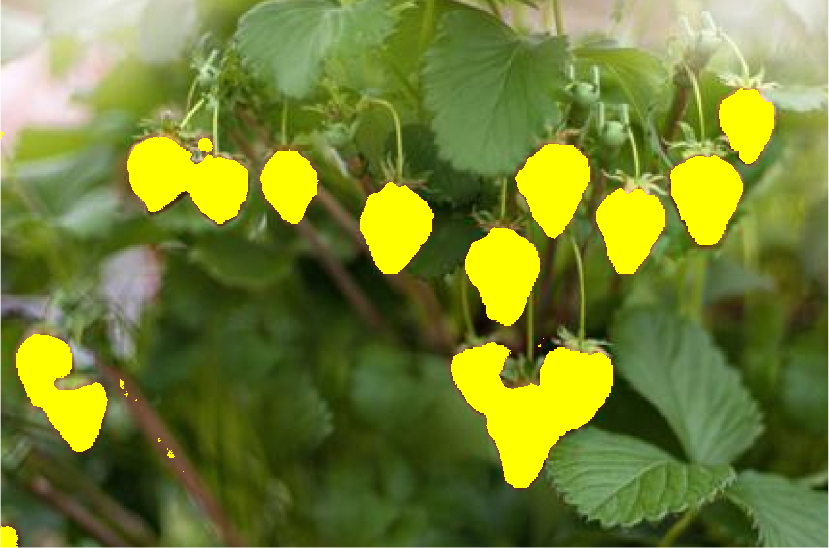

Burns a mask onto an image. Wrapper for imoverlay but with syntax similar to imshowpair.

INPUTS

• img: a grayscale or rgb image
• mask: a binary mask

OPTIONAL INPUTS

• color: the color of the burned image (default = yellow)

mmShowBurnImage(rgb,mask)
mmShowBurnImage(rgb,mask,color='white')

mmShowStruct

Displays any images packaged in a structure as a tiled figure. Useful for reviewing image processing steps.

INPUTS

• S: a structure contain fields with image variables
• fn2display: cell array or string array specifying the structure field names to display
• titles (optional): string array of titles for plots

mmShowStruct(p)
mmShowStruct(p,fn2display={'rgb','gray'})
mmShowStruct(p,fn2display={'rgb','gray'},titles={'Original','Grayscale'})

mmBoxSwarm

A wrapper for swarmchart and boxchart that overlays a swarm chart on a box chart.

INPUTS

• x: (Optional) Enter empty brackets to generate a series of ones
• y: Vector of numeric data

OPTIONAL INPUTS

• PlotType: enter 'violin' for a violin plot (default is 'swarm')
• XAxVisible: display x-axis (default = 'off')
• MarkerFaceColor: set marker face color
• MarkerFaceAlpha: set marker face alpha (default =0.25)
• doBoxPlot: overlay boxplot (default is true)
• BoxFaceColor: set boxplot face color
• BoxFaceAlpha: set boxplot face alpha (default = 0.1)
• Notch: Turn on box plot notch (default = 'off')
• XJitterWidth: set jitter width of swarm chart (default = 1)

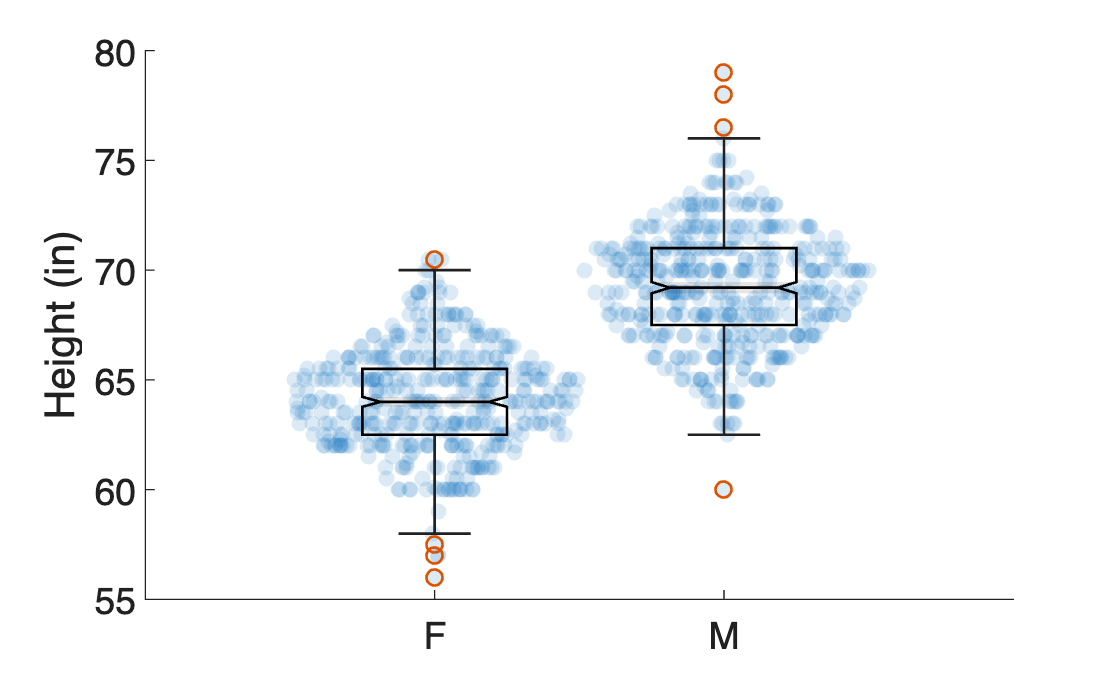

mmBoxSwarm([],nD.data); % y-data only
mmBoxSwarm(x,y,'BoxFaceColor','k','Notch','on','MarkerFaceAlpha',0.15) % grouping data and y-data

mmAddScaleBar

Adds a scalebar to current image

INPUTS

• ax: the handle to the axis where you want to add your scale bar
• width: the length of the scalebar
• widthPERpixel: the dimensions of a pixel side (e.g. um per pixel)

OPTIONAL INPUTS

• Color: the color of the scale bar
• LineThickness: thickness of the scale bar (in points)
• pos: a row vector containing the X and Y coordinates where you want the scale bar. You can enter empty brackets to skip
• unit: a character array indicating the unit of measure. If inputted, the width of the scalebar will be printed above the bar

mmAddScaleBar(gca,100, 2.3);
mmAddScaleBar(gca,50,0.23,'white', 4, [],'µm');

NOTE: the measurements don't have to be in microns. They just have be consistent between width and widthPERpixel

mmHistColor

Overlays the RGB channel histograms of a color image, as either an area plot or a stem plot.

INPUTS

• RGB: an RGB image

OPTIONAL INPUTS

• Pass 'stem' as the second argument to plot the histograms as stem plots instead of the default area plot
• Pass a numeric value below 1 as the second argument to set the fill transparency (alpha) of the area plot (default = 0.75)

mmHistColor(RGB) % area plot of each channel's histogram (default)
mmHistColor(RGB,'stem') % stem plot of each channel's histogram
mmHistColor(RGB,0.4) % area plot with alpha set to 0.4

mmTightTiledLayout

Creates a new figure with a horizontal tiled layout that has no tile spacing or padding.

mmTightTiledLayout
nexttile; imshow(img1)
nexttile; imshow(img2)

Image Processing

mmGetWatershed

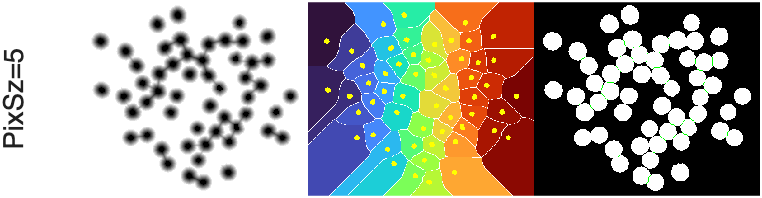

Separates touching objects in a 2D or 3D mask using the watershed transform. The function inverts the distance transform of the mask so that each object's center becomes a basin, keeps only the basins that are deep enough, and then floods them with the watershed transform. The dividing lines between basins are cut out of the mask. See Distance Transform and the Watershed for a full explanation. Based on this MATLAB blog.

INPUTS

• BW: logical array (2D or 3D), the mask to separate
• PixSz: minimum basin depth, in pixels (2D) or voxels (3D) of distance. An object is split from its neighbor only if its center is at least PixSz pixels farther from the background than the narrowest point of the neck joining them. Larger values split fewer objects (conservative); smaller values split more (aggressive). A vector, e.g. [5 3 1], runs one pass per value. Passed to imextendedmin as H. Default: 3

OPTIONAL INPUTS (name-value)

• conn: connectivity passed to imextendedmin and watershed (e.g. 4 or 8 in 2D; 6, 18, or 26 in 3D). Default: 0, which uses the MATLAB defaults (8 in 2D, 26 in 3D)
• ShowSteps: logical. If true, displays each pass (2D only): the inverted distance transform, the watershed regions with the chosen basins overlaid, and the mask before vs. after. Default: false

OUTPUTS

• BW: the mask with touching objects separated
• pLd1: (optional) watershed label matrix from the last pass, before it is masked to BW

BW = mmGetWatershed(BW,5);                 % one pass, basin depth 5
BW = mmGetWatershed(BW,5,ShowSteps=true);  % display the steps
BW = mmGetWatershed(BW,5,conn=4);          % basin depth 5, 4-connectivity
BW = mmGetWatershed(BW,[5 3 1]);           % three passes, depths 5, 3, then 1

mmGetTextureFilters

Applies multiple texture filters to input image. Texture filters include standard deviation, range, and entropy.

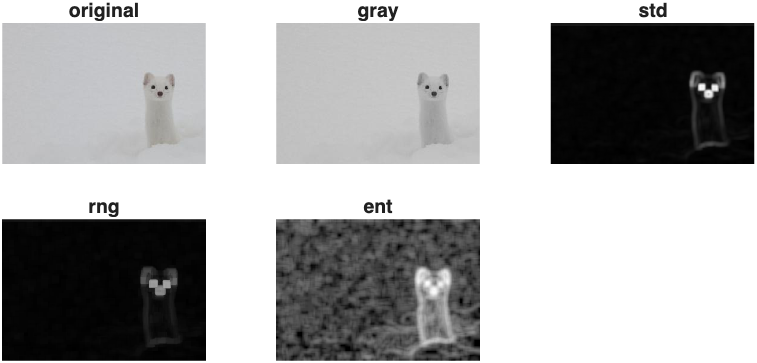

Text Filters applied to an image of a Ferret and displayed using mmShowStruct

INPUTS

• p: a structure that must contain a field called either 'rgb' or 'img'. rgb should be an rgb image. img should be a grayscale image.

• nhood: (optional) a neighborhood matrix (typically logical or array of ones).

OUTPUT

• p: updated structure containing four new fields: gray, std, rng, and ent

p = mmGetTextureFilters(p) % get filtered images with default neighborhood

% Apply a 7x7 neighborhood and display all filtered images
p = mmGetTextureFilters(p,true(7)) % get filtered images with a neighborhood of 7x7
mmShowStruct(p) % display filtered images

mmReadImgND

This function uses the MATLAB Bio-formats toolbox to read in multidimensional image stacks.

REQUIREMENTS

The Bio-formats toolbox, bfmatlab, must be downloaded and added to the search path.

INPUTS (optional)

• file_path is a path to an image file. If you don't input a file path, you will be prompted for a path.

OUTPUTS

• IMGND: an XYZCT multidimensional array
• metadata: the metadata from the array in XML format

[IMGND, metadata] = mmReadImgND(file_path)

mmReadRAWimage

Reads a RAW image (.dng) captured with a Sony DSLR camera.

INPUTS (optional)

• im_file: path to a .dng raw image file. If omitted, you will be prompted to select a file.

OUTPUTS

• RAW: the raw image
• metadata: image metadata (from imfinfo)

[RAW, metadata] = mmReadRAWimage(im_file)

3D Slicer Functions

Functions to process segmentation volumes created in 3D Slicer. Requires the Mathworks Medical Toolbox.

All Slicer volumes should be loaded as medicalVolumes.

mmGetSlicerSegmentInfo

Returns a table containing the properties (e.g. name, color, etc.) of the segmentations found in a seg.nrrd file

INPUTS

• file path to a segmentation file

OPTIONAL INPUTS

• addVolInfo (logical, default = false): include additional volume metadata in the output table

OUTPUT

• a table with segmentation names, layer, label, and color values

segT = mmGetSlicerSegmentInfo(seg_file_path)

mmGetSlicerSegmentInfoAll

Reads the segment names, colors, and label values from every Slicer segmentation file (*.seg.nrrd) in a folder, and stacks them into one table. Use it to load a whole class's segmentations at once. A file that can't be read is reported in the command window and skipped.

The ID of each file is the start of its file name, before the first space (for example, Salcedo in Salcedo CTACardio.seg.nrrd). So start each file name with your name or another ID.

INPUTS

• folderPath: the folder that contains the segmentation files

OPTIONAL INPUTS (name-value)

• idDelimiter: the text that ends the ID in each file name (default = " ", a space). Use "_" for file names like Salcedo_CTACardio.seg.nrrd
• subFolders (logical, default = false): also search every subfolder (for example, one folder per student)

OUTPUTS

• allSegT: one row per segment per file, with the file number (Num), ID, Filename, and the columns of mmGetSlicerSegmentInfo
• contentT: one row per file, with the file name, folder, date, ID, volume size, and pixel spacing

[allSegT, contentT] = mmGetSlicerSegmentInfoAll(paths.classFolder);
[allSegT, contentT] = mmGetSlicerSegmentInfoAll(paths.classFolder, subFolders=true, idDelimiter="_");

mmGetMedicalVolumeSegment

Indexes out a segment from a Slicer Segmentation volume loaded as a medicalVolume. The function returns a structure that contains the mask of the indicated segment, color, and transformation matrix of the selected segmentation. First load a Slicer Segmentation file using medicalVolume and the Slicer segmentation table using mmGetSlicerSegmentInfo.

INPUTS

• mV (required): medicalVolume of a Slicer Segmentation dataset
• segT (required): table - table created by mmGetSlicerSegmentInfo
• segName (optional): string - Name of Segment to return.

If segName not provided, you will be prompted to select one segmentation from the inputted segT table.

OUTPUTS

S: The function returns a structure with the following fields

• segName: Name of selected segment
• mask: binary mask of the selected segment
• color: color of the segmentation as set in Slicer
• tform: transformation matrix to properly orient segmentation
• spacing: Voxel spacing
• volume: calculated using regionprops3.

S = mmGetMedicalVolumeSegment(mv,segT,segName="right kidney")

mmMatchVolumeGeometry

Puts a segmentation on the same voxel grid as the CT or MRI it was made from, by adding or removing slices at the edges. Use it when a Slicer segmentation is a slightly different size than its volume (for example, TotalSegmentator in Slicer 5.13 can add one extra empty slice). The function only pads or crops, so the two volumes must already have the same voxel spacing and orientation. If they don't, resample the segmentation in Slicer instead.

INPUTS

• mV: medicalVolume to fix (usually a segmentation)
• refMV: medicalVolume with the size and position to match (usually the CT)

OPTIONAL INPUTS (name-value)

• Tolerance: allowed mismatch, as a fraction of a voxel (default = 0.01)

OUTPUT

• mVout: a medicalVolume with the same size and geometry as refMV. Added slices are zeros. You get a warning if any removed slices contained segmented voxels.

ctMV = medicalVolume(paths.ct);
segMV = medicalVolume(paths.seg);
segMV = mmMatchVolumeGeometry(segMV, ctMV);

mmWriteNRRD

Saves a medicalVolume as a file that 3D Slicer can open. MATLAB can read NRRD files, but it can't write them. Save an image volume as .nrrd, or a segmentation as .seg.nrrd with named and colored segments. The voxel spacing, orientation, and position are kept, so the file lines up with the original volume in Slicer.

INPUTS

• filename: the file to write (.nrrd, or .seg.nrrd for a segmentation)
• mv: a medicalVolume. For a segmentation, each voxel holds a label value (0 = background)

OPTIONAL INPUTS (name-value)

• Segments: a table with the variables SegName, LabelValue, and Color (like the output of mmGetSlicerSegmentInfo). Include it to save a Slicer segmentation.
• Compress (logical, default = true): compress the voxels with gzip

mmWriteNRRD("MRBT1stripped.nrrd", strippedMV)   % an image volume

segT = table("brain", 1, [0.9 0.7 0.6], VariableNames=["SegName" "LabelValue" "Color"]);
mmWriteNRRD("brain.seg.nrrd", brainMV, Segments=segT)   % a segmentation

Measure and Compare Segmentations

Functions to measure segmentations and to compare two segmentations of the same structure. They all take the structures returned by mmGetMedicalVolumeSegment, and they all work in millimeters.

mmSurfaceDistance

Compares two segmentations of the same structure (for example, your aorta and TotalSegmentator's aorta) by the distance between their surfaces, like the CloudCompare program. For every point on the surface of A, it measures the distance to the surface of B: negative if the point is inside B, positive if it is outside. The figure shows the surface colored by this distance (blue = inside, red = outside) next to a histogram of the distances.

INPUTS

• A, B: the two segmentations. Either structures from mmGetMedicalVolumeSegment, or 3D logical masks of the same size (then also give Tform or VoxelSpacing)

OPTIONAL INPUTS (name-value)

• Names: names of A and B, for the figure and table (default = ["A" "B"])
• Direction: "AtoB" (default) measures from A to B. "both" also measures from B to A. Use "both" when neither segmentation is the reference.
• Tolerance: distance (mm) at which the surfaces count as agreeing (default = 2)
• Limit: color limit (mm). Default: the 95th percentile of the distances
• Smooth (logical, default = false): smooth both masks first (useful for blocky segmentations)
• ReduceFactor: fraction of the surface triangles to keep (default = 0.3)
• BinWidth: histogram bin width in mm (default = 0.5)
• Title: title of the figure window
• Plot (logical, default = true): false skips the figure
• UsePatch (logical, default = false): plot with patch instead of surfaceMeshShow
• Tform, VoxelSpacing: voxel-to-mm conversion, for mask inputs

OUTPUTS

• T: a table with one row per direction: the mean, median, 95th percentile (HD95), and largest (Hausdorff) distance in mm, the percent of the surface within the tolerance, the mean signed distance, and the Dice coefficient
• S: the surfaces (fv) and the distance at each vertex

T = mmSurfaceDistance(mySeg, totSeg, Names=["Ours" "TotalSegmentator"]);
T = mmSurfaceDistance(t1Seg, t2Seg, Names=["Tumor1" "Tumor2"], Direction="both");

Requirements

Image Processing Toolbox. The surfaces are shown with surfaceMeshShow (Lidar Toolbox, or Point Cloud Toolbox in newer releases) if you have it; otherwise patch is used.

mmMirrorAlign

Mirrors one segmentation across the patient's midline (left ↔ right) and aligns it to another, so you can compare paired structures like the left and right kidneys or femurs. After mirroring, it lines the two up with ICP (a rigid registration: rotation and translation only), and puts the result on the voxel grid of the first segmentation. Then you can compare the two with dice or mmSurfaceDistance.

INPUTS

• fixedSeg, movingSeg: structures from mmGetMedicalVolumeSegment. The moving segmentation is mirrored and moved onto the fixed one.

OPTIONAL INPUTS (name-value)

• Mirror (logical, default = true): false aligns without mirroring
• MaxIterations: maximum number of ICP iterations (default = 100)
• GridSize: the surfaces are downsampled to this grid (mm) for ICP (default = 1)

OUTPUTS

• alignedSeg: a structure like fixedSeg, holding the mirrored and aligned moving segmentation
• rmse: root-mean-square distance (mm) between the two surfaces after alignment. Lower means a better fit
• worldTform: the affinetform3d that maps the moving segmentation onto the fixed one, mirror included

rk = mmGetMedicalVolumeSegment(segMV, segT, segName="right kidney");
lk = mmGetMedicalVolumeSegment(segMV, segT, segName="left kidney");
lkOnRk = mmMirrorAlign(rk, lk);
mmSurfaceDistance(rk, lkOnRk, Names=["Right kidney" "Left kidney (mirrored)"], Direction="both")

Requirements

Computer Vision Toolbox (for pcregistericp).

mmCrossSectionProfile

Measures the cross-sections of a long structure, like a femur or the aorta, along its whole length. The function finds the long axis of the structure (or traces a curved centerline), cuts the structure into thin slabs perpendicular to it, and measures each slab:

• Area and equivalent diameter: the diameter of a circle with the same area
• Inscribed diameter: the diameter of the largest sphere that fits inside the slab
• Narrowest and widest widths of the cross-section (the minimum and maximum Feret diameters)

The figure shows the structure colored by its diameter, the cross-section at the chosen position, and the diameter profile along the length.

INPUTS

• seg: a structure from mmGetMedicalVolumeSegment, or a 3D logical mask (then also give Tform). The voxels must be cubes.

OPTIONAL INPUTS (name-value)

• Centerline: "straight" (default) uses a straight long axis. Use it for long bones. "curved" traces a smooth centerline through the middle of the structure. Use it for curved vessels, like the aorta. You can also give an N-by-3 array of [x y z] points (mm).
• SlabWidth: thickness of each slab in mm (default = two voxels)
• At: position (% of the length, from the inferior end) of the cross-section shown in the figure and returned in S.At (default = 50, the middle)
• Smoothing: length (mm) of the window used to smooth a curved centerline (default = 30)
• Plot (logical, default = true): false skips the figure
• Title: title of the figure
• Tform: voxel-to-mm conversion, for mask inputs

OUTPUTS

• T: a table with one row per slab, from the inferior end: position (mm and %), area, equivalent diameter, inscribed diameter, and narrowest and widest widths
• S: the length of the structure, its centerline, and the cross-section at the At position (S.At), including its left-right (WidthLR_mm) and front-back (WidthAP_mm) widths. For a femur, these are the mediolateral and anteroposterior widths.

[T, S] = mmCrossSectionProfile(femurSeg);                       % femur
[T, S] = mmCrossSectionProfile(aortaSeg, Centerline="curved");  % aorta
S.At                                                            % the cross-section at midshaft

Requirements

Image Processing Toolbox.

Automatic Segmentation

Functions that segment a CT or MRI with an AI model, without opening Slicer. Use them to segment many scans in a loop, or to get a reference segmentation to compare yours to.

mmTotalSegmentator

Segments a CT scan with TotalSegmentator from MATLAB, using the copy of TotalSegmentator that the extension installed in 3D Slicer. It gives the same result as the TotalSegmentator module in Slicer, with the same segment names and colors, and it uses the GPU when Slicer can (for example, on a Mac with Apple silicon). Use it to segment many scans in a loop.

Set up Slicer first

Install 3D Slicer and its TotalSegmentator extension, and run TotalSegmentator once in Slicer. This installs everything it needs and downloads the AI models. You don't need to install Python.

INPUTS

• input: a CT as a medicalVolume, or the name of a file that medicalVolume can read (.nrrd, .nii, .nii.gz, or a DICOM folder)

OPTIONAL INPUTS (name-value)

• OutputFile: a .seg.nrrd file for the segmentation
• VolumesFile: a .csv file with the volume of each structure
• Quality: "normal", "fast" (3 mm), or "fastest" (6 mm). Default "auto": normal with a GPU, fast without one
• Structures: segment only these structures, for example ["aorta" "left kidney"]. Faster, but the result can differ slightly from a full run
• Task: the TotalSegmentator task (default = "total")
• Device: "auto" (default), "gpu", "mps" (Mac GPU), or "cpu"
• SlicerPath: the Slicer to use. Default: the newest Slicer that has TotalSegmentator
• Verbose (logical, default = true): show progress messages

OUTPUTS

• segMV: a medicalVolume with the label of each voxel, on the same voxel grid as the CT. The label values are TotalSegmentator's (for example, 52 = aorta), so they are the same in every scan
• segT: a table with one row per structure found: its Slicer name, label value, color, TotalSegmentator name, and volume (mL)

ctMV = medicalVolume("CTACardio Crop.nrrd");
[segMV, segT] = mmTotalSegmentator(ctMV, OutputFile="CTACardio Crop segmentation.seg.nrrd");
aortaMask = segMV.Voxels == segT.LabelValue(segT.SegName == "aorta");

% only the kidneys and the aorta
[segMV, segT] = mmTotalSegmentator(ctMV, Structures=["left kidney" "right kidney" "aorta"]);

Citation

Wasserthal J et al. TotalSegmentator: robust segmentation of 104 anatomic structures in CT images. Radiology: Artificial Intelligence, 2023.

mmSynthSeg2

Segments a brain MRI into 32 structures with SynthSeg 2.0, entirely in MATLAB. SynthSeg works on MRIs of any contrast (T1, T2, FLAIR) and resolution. You don't need Python or the SynthSeg extension for Slicer, and you get the same structure names and label values as the Slicer extension. The first time you run it, it downloads the model (about 50 MB).

INPUTS

• input: a brain MRI as a medicalVolume, or the name of a file that medicalVolume can read (.nrrd, .nii, .nii.gz, or a DICOM folder)

OPTIONAL INPUTS (name-value)

• OutputFile: a .seg.nrrd file for the segmentation. You can drag it into 3D Slicer
• VolumesFile: a .csv file of the volumes, with the same columns as the Slicer extension's file
• ModelFile: the SynthSeg 2.0 model file (default: downloaded automatically)
• Verbose (logical, default = true): show progress messages

OUTPUTS

• segMV: a medicalVolume with the label of each voxel, on the 1 mm grid that SynthSeg uses. To put the labels on the voxels of your MRI, use resample(segMV, mriMV.VolumeGeometry, Method="nearest")
• segT: a table with the name, label value, and color of each structure (like mmGetSlicerSegmentInfo)
• volumes: a table of the volume of each structure (mm³) and the total intracranial volume

mriMV = medicalVolume("MRBT1stripped.nrrd");
[segMV, segT, volumes] = mmSynthSeg2(mriMV, OutputFile="MRBT1stripped_synthseg.seg.nrrd");

Requirements

Deep Learning Toolbox, Image Processing Toolbox, and Medical Imaging Toolbox, and about 8 GB of memory.

Citation

Billot B et al. SynthSeg. Medical Image Analysis, 2023. Billot B et al. SynthSeg 2.0. PNAS, 2023.

mmSkullStrip

Removes the skull from a brain MRI. It finds the brain with SynthSeg 2.0 (mmSynthSeg2) and sets every voxel outside the brain to 0. A tumor inside the brain is kept, even though SynthSeg doesn't label it. This replaces the HD Brain Extraction extension of 3D Slicer.

INPUTS

• input: a brain MRI as a medicalVolume, or the name of a file that medicalVolume can read

OPTIONAL INPUTS (name-value)

• OutputFile: a .nrrd file for the skull-stripped MRI
• MaskFile: a .seg.nrrd file for the brain mask, as a Slicer segmentation
• SynthSeg: the first output of mmSynthSeg2, if you already have it. Then SynthSeg doesn't run again
• Verbose (logical, default = true): show progress messages

OUTPUTS

• strippedMV: the MRI, with 0 outside the brain
• brainMV: the brain mask (1 = brain, 0 = outside)

mriMV = medicalVolume("MRBrainTumor1.nrrd");
strippedMV = mmSkullStrip(mriMV, OutputFile="MRBT1stripped.nrrd", MaskFile="MRBT1SkullStrip.seg.nrrd");

% segment the brain and remove the skull with one run of SynthSeg
synthMV = mmSynthSeg2(mriMV);
strippedMV = mmSkullStrip(mriMV, SynthSeg=synthMV);

Display Segmentations

mmPlotAllSeg

Wrapper function that plots all segmentations from a 3D Slicer segmentation volume. Options include Smoothing and decimation, and lighting.

INPUTS

• mV: medicalVolume of a Slicer Segmentation dataset
• segT: Table containing the following slicer info — Name, Layer, LabelValue, Color

OPTIONAL INPUTS (name-value)

• new_figure: logical (default = false). Create a new figure if true
• falpha: scalar (0-1, default = 0.5) - transparency of the faces
• smooth: boolean (default=false). True means Smooth volume
• dec_factor: scalar (0-1, default = 0.15) - fraction of the surface triangles to keep

OUTPUT

• hp: array of patch handles to surface plots

segT = mmGetSlicerSegmentInfo(seg_file);
hp = mmPlotAllSeg(mV,segT);
hp = mmPlotAllSeg(mV,segT, falpha=0.25);

mmVolShowPair

Displays two volshow viewers side-by-side in a tiled layout, for comparing two segmentations. Designed to work with structures returned by mmGetMedicalVolumeSegment.

INPUTS

• seg1, seg2: structures (from mmGetMedicalVolumeSegment) each containing a mask and tform field

OPTIONAL INPUTS

• segTitle: title for the display window (default = "My Seg Comparison")

S1 = mmGetMedicalVolumeSegment(mV,segT,segName="right kidney");
S2 = mmGetMedicalVolumeSegment(mV,segT,segName="left kidney");
mmVolShowPair(S1,S2,"Kidney Comparison")

mmSetVolShowColors

Applies a Medical Colormap and alphamap to a volshow render, and optionally sets the viewer's background color. If no MapName is provided, a selection dialog pops up.

INPUTS

• hVolShow: handle to a volshow object

OPTIONAL INPUTS

• MapName: name of the Medical Colormap to apply. Options: CTBone, CTBoneShift, CTCoronary, CTLung, CTSoftTissue, MRI, PET
• BackgroundColor: background color of the viewer (default = 'white'). Set to 'default' to leave the background unchanged.
• BackgroundGradient: turn on a background gradient (default = 'off')
• GradientColor: color of the background gradient (only applies if BackgroundGradient is on)

OUTPUT

• MapName: name of the colormap that was applied

MapName = mmSetVolShowColors(hVolShow)
MapName = mmSetVolShowColors(hVolShow,MapName="CTLung")

mmSaveViewer3D

Saves a viewer3d figure (e.g. from volshow) to an image file.

INPUTS (optional)

• FigHandle: the uifigure that contains the viewer3d (e.g. hVolShow.Parent)
• Fullpath: file path to save the image to. If omitted, you will be prompted to choose a location.

mmSaveViewer3D(hVolShow.Parent)

Surface Functions

Functions to process and manipulate surface meshes. Many of these functions work well with the vertices field in a patch handle, allowing for real-time update of the surface plot.

mmPlotMask2Surface

Wrapper function that creates an isosurface from an input volume. Options include smoothing of the volume, decimation, and lighting. Default plots surface as a patch in one simple function call.

INPUTS

• BW: logical 3D array

OPTIONAL INPUTS (in this order). Enter empty brackets if skipping.

• fcolor: character array (default = 'cyan') - facecolor of the isosurface.
• falpha: scalar (0-1, default = 0.5) - transparency of the faces
• lightEMup: boolean (default = true) - add lights to the scene. For multiple function calls, set to false for all calls, except the last one. Then set to true on the final call. Otherwise you'll add too many lights to the scene.
• report: boolean (default=false) - print a report of settings to command window
• smooth: boolean (default=false). True means Smooth volume
• decimator: decimation factor (0-1, default=0.15) of the generated surface
• transform: affinetform3d 3D affine transformation (default = no transformation). Used to transform the vertices to match the orientation and size of the original volume.

OUTPUT

• hp: handle to patch

hp = mmPlotMask2Surface(BW);
hp = mmPlotMask2Surface(BW,fcolor='cyan');
hp = mmPlotMask2Surface(BW,fcolor='magenta',falpha=0.25, lightEMup=true, decimator=0.2);

tform = createScaling3d(Sseg.xyz)
hp = mmPlotMask2Surface(BW,'magenta',transform=tform);

mmGetSurface

Generate a surface mesh of the inputted 3D volume. Returns a face-vertices structure.

INPUTS

• Vol: a 3D volume
• iv (numeric): isovalue from which to generate the surface
• decimator (0-1): amount by which to decimate the generated surface.
• use_fast_march (logical): Use the function extractIsosurface to more quickly generate an isosurface. Default = true.
• centerSurface (logical): Center the vertices to 0,0,0. Default = false
• transform: affinetform3d 3D affine transformation (default = no transformation)

OUTPUT

• fv: a faces-vertices structure
• s: string reporting the decimation

fv = mmGetSurface(Vol);
fv = mmGetSurface(Vol,0.5,0.1)

REQUIREMENTS

Medical toolbox required for fast marching isosurface

mmPlotSurface

Wrapper function to patch. plots the input fv structure as a patch. Lights not added. Use mmSetSurfacePlotProps to add lighting and correct aspect ratios

INPUTS

• fv: a faces-vertices structure (output from isosurface)
• fcolor: face color
• falpha: face alpha

OUTPUT

• hp: handle to the patch

hp = mmPlotSurface(fv,'cyan',0.5);
mmSetSurfacePlotProps % add lighting to plot

mmSetSurfacePlotProps

Sets the light position, aspect ratio, and axis labels for a surface plot. Call after mmPlotSurface — or, if plotting multiple surfaces in a loop, call once after the last plot.

No inputs or outputs.

hp = mmPlotSurface(fv,'cyan',0.5);
mmSetSurfacePlotProps

mmAlignSurface2Axes

Transforms the vertices so that the direction of most variance is aligned to the x-axis. Based on this discussion.

INPUTS

• Vert: NX3 array of Vertices to be transformed

OUTPUT

• Vert: Transformed vertices
• Vd: Variance

hp.vertices = mmAlignSurface2Axes(hp.vertices)

mmRotateSurfaceVertices

Rotate the vertices of a surface around the specified axis by the specified angle (in degrees).

INPUTS

• vertices: (matrix): Nx3 vertices
• ax (character array): axis around which to rotate — x, y, or z
• angl (scalar): angle (in degrees) to rotate
• centerVerts (logical): optional. Center Vertices around 0,0,0 prior to rotation

vertices = mmRotateSurfaceVertices(vertices, 'x',45)

mmCreateRotationMat

Creates an affine rotation matrix (affinetform3d) for rotating about the x, y, or z axis. Useful for building a transform to pass into functions like mmPlotMask2Surface or mmGetSurface.

INPUTS

• angl: amount of rotation, in degrees
• ax: axis to rotate around — 'x', 'y', or 'z'

OPTIONAL INPUTS

• origin: 1x3 vector — origin to rotate around (default = [0 0 0])

OUTPUT

• tform: affinetform3d affine rotation transformation

tform = mmCreateRotationMat(45,'x')

mmAlignSurfaces

Registers two point clouds using an iterative closest point algorithm. This function requires the Computer Vision Toolbox. The inputs and outputs of this function are a matrix of 3D coordinate points (xyz)

INPUTS

• vertFixed: NX3 vertices matrix of Fixed Surface
• vertMoving: NX3 vertices matrix of Surface to be moved (registered to fixed surface)

OUTPUT

• vertMoving: NX3 vertices matrix of registered surface
• rmse: root-mean-square error of the final registration

 [vertMoving,rmse] = mmAlignSurfaces(vertFixed, vertMoving,options)

mmCalcSurfaceAreaFromMesh

This function will calculate the sum of all triangles in the mesh to calculate Surface area.

If P1, P2, and P3 are 3D coordinate vectors of the three respective vertices of some particular triangle, then its area is given by:

AreaP1P2P3 = 1/2*norm(cross(P2-P1,P3-P1));

Adapted from this discussion

[SurfaceArea] = mmCalcSurfaceAreaFromMesh(Vertices,Faces)

Apps

mmSliceView

A custom image stack viewer app. Can handle 3D and 4D image stacks. Can load Image Stacks and accompanying binary Masks

Benefits

• Relatively Responsive
• Quickly scrub through image using the mouse scroll wheel
• Turn on image contrast for each slice
• Simultaneously load an image stack and a mask — overlay the mask on each slice view

mmSliceView(STACK)

Utility Functions

mmSetFigPublication

Sets the default axes font to 16 and figure color to white

mmSetFigPublication(14) % Set Font size to 14

mmSetUnitDataFolder

Sets the current folder to the indicated unit data folder from the MtMdata Shared Folder (Must be at root level of MATLAB drive)

mmSetUnitDataFolder(3) % sets folder to unit 3

mmGetChannelMap

This function returns a color map (with 256 shades) of the indicated color

INPUT: a channel name, letter, or index OUTPUT: a colormap of the shade indicated by the input

red_cm = mmGetChannelMap('red')
green_cm = mmGetChannelMap('g')
