Transforming Surface Models

Since surface models are just points in 3D space, it is very easy to manipulate the position and size of these models using some basic mathematical operations. These operations are collectively known as transformations.

Transformation Categories

Transformations can be broadly categorized as:

• Translation: movement along the x,y,z axes (addition or subtraction)
• Scale: enlarging or shrinking the model (multiplication or division)
• Rotation: rotation around a given axis (transformation matrix and linear algebra)

Often, these transformations are combined. You can also warp and shear a model, but we won't get into that here.

Translating Surface Models

One of the simplest things to do with a surface model is to move the model in 3D space. For this example, we first create a surface model of a diamond.

V = [0.5 0.5 2.0;... %  vertices for the surface
    0 0 0;...
    1 0 0;...
    0 1 0;...
    1 1 0;
    0.5 0.5 -2.0];
F = boundary(V); % faces for the surface

We render the surface using the function patch.

figure;
hp = patch("Faces",F,"Vertices",V, ... % render surface
    "FaceColor",'flat', ...
    "FaceVertexCData",abyss(8)); % blue face colors
axis equal; view(3); grid on; % figure properties
xlabel('X'); ylabel('Y'); zlabel('Z'); % label axes

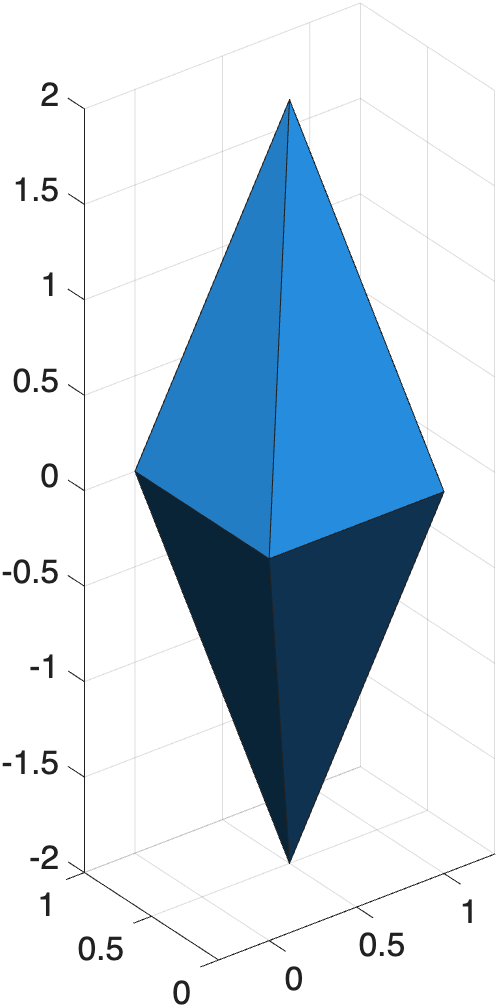

Render of a diamond surface model

To translate a surface, you simply add (or subtract) the distance to the vertices.

V2 = V+2; % translate vertices +2
hp2 = patch("Faces",F,"Vertices",V2, ... % render new surface
    "FaceColor",'flat', ...
    "FaceVertexCData",abyss(8));
set(hp,"FaceAlpha",0.5, "EdgeAlpha", 0.5); % increase transparency of original diamond

axis equal % 2nd call helps zoom in on renders

In the above code, we created a new vertices matrix, V2, by adding 2 to all vertices in V. Notice we didn't need to change the Faces matrix, F. We just modified the vertices. By adding 2 to each vertex, we translated the surface +2 in the x,y, and z directions.

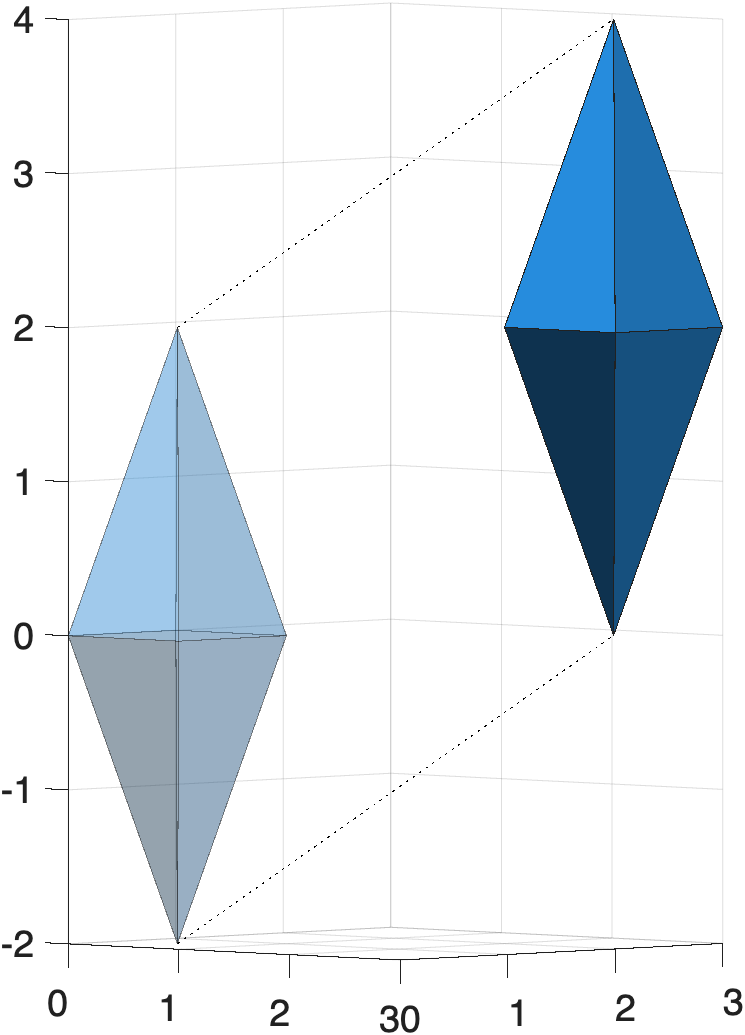

Side-view render of the original (transparent) and translated diamond (solid). Here, the z is the vertical axis.

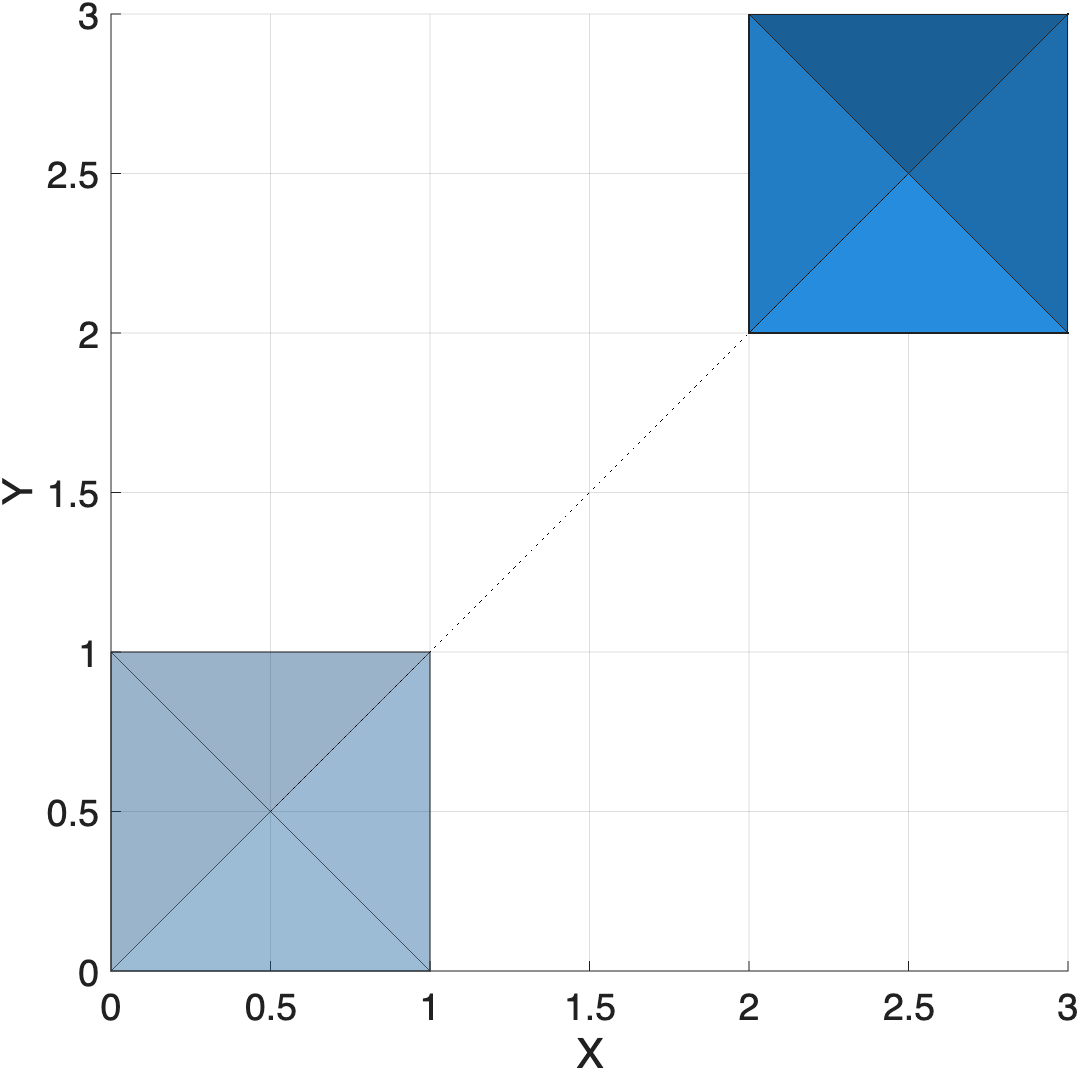

Aerial view of the same render. Bottom left render is original diamond, while top right is the translated diamond.

hp2.Vertices = hp2.Vertices - [0 0 6]; % translate -6 in the z-direction
axis equal

The patch handle (hp2) contains the faces and vertices of the surface. When we modify the vertices in the handle, the render is instantly transformed:

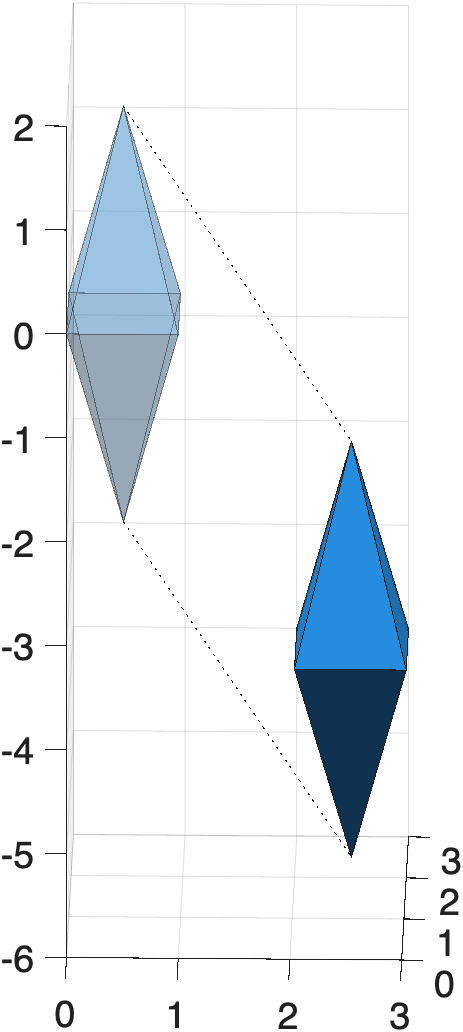

Diamond translated -6 along just the z-axis

hp2.Vertices = hp2.Vertices-mean(hp2.Vertices); % center surface

Sometimes, it is useful to center a 3D surface at 0,0,0. Here we center the surface by subtracting the mean of the vertices from all vertices. This works because the mean returns the centroid of the surface (its center of mass).

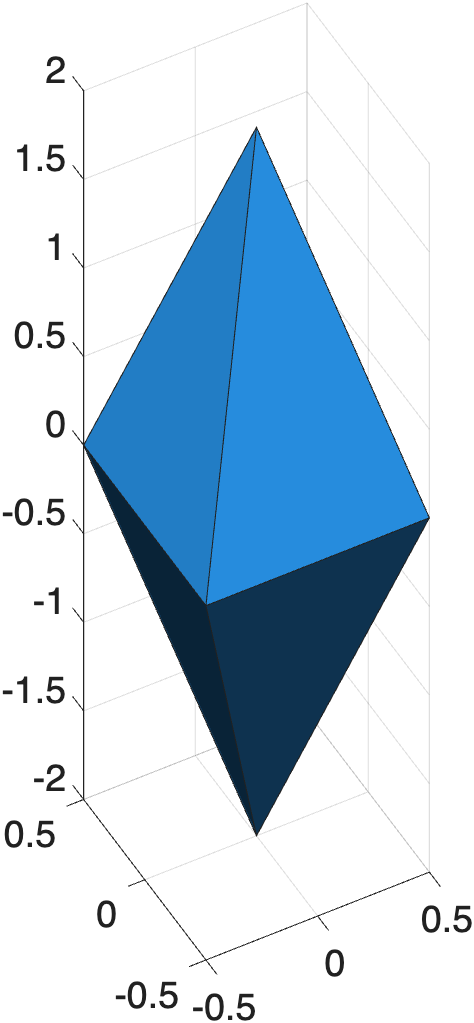

The surface is now centered at 0,0,0

Scaling

Scaling changes the size of the surface model. As we just saw, to move a surface, you add or subtract values from the vertices. To scale a surface, you multiply or divide values from the vertices. Multiplying enlarges the model, while dividing shrinks the model.

hp2.Vertices = hp2.Vertices * 2 % double the size

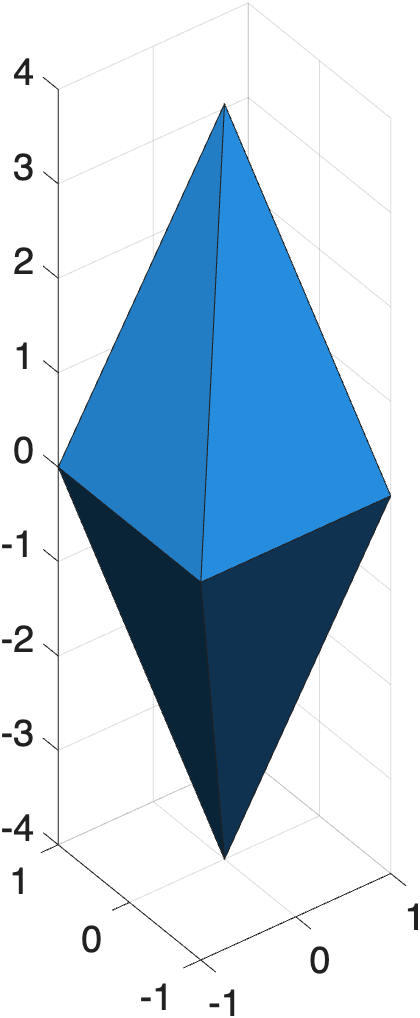

The surface model is now doubled along all dimensions.

Challenge: How would you make the diamond 10x smaller?

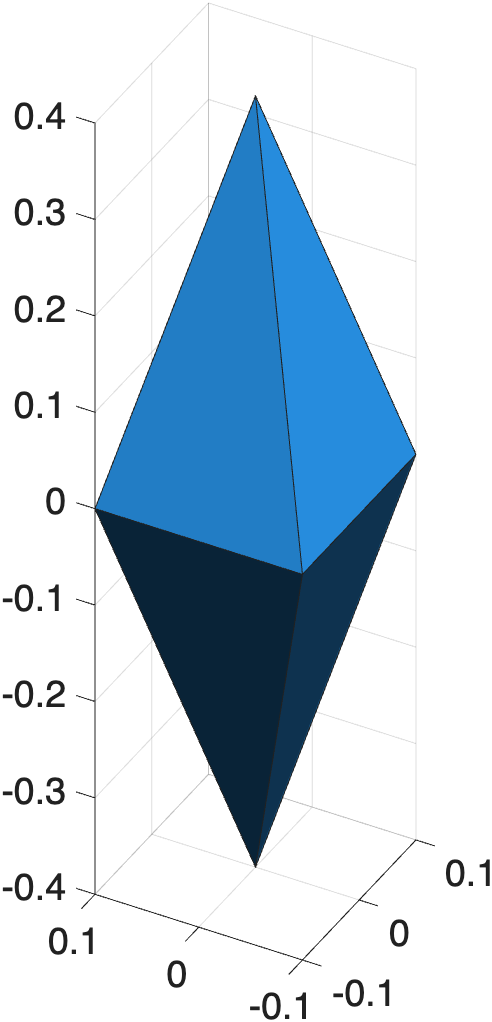

Make Diamond Tiny

hp2.Vertices = hp2.Vertices / 10

Rotation

To rotate a surface, you need a transformation matrix and some linear algebra. For those who prefer not to perform linear algebra on the fly, the required steps are encapsulated in the course function mmRotateSurfaceVertices:

hp2.Vertices = mmRotateSurfaceVertices(hp2.Vertices,'y',90)

The function takes three arguments:

1. Vertices — the Nx3 matrix of vertices to rotate
2. Axis — the axis of rotation: 'x', 'y', or 'z'
3. Angle — the angle of rotation in degrees

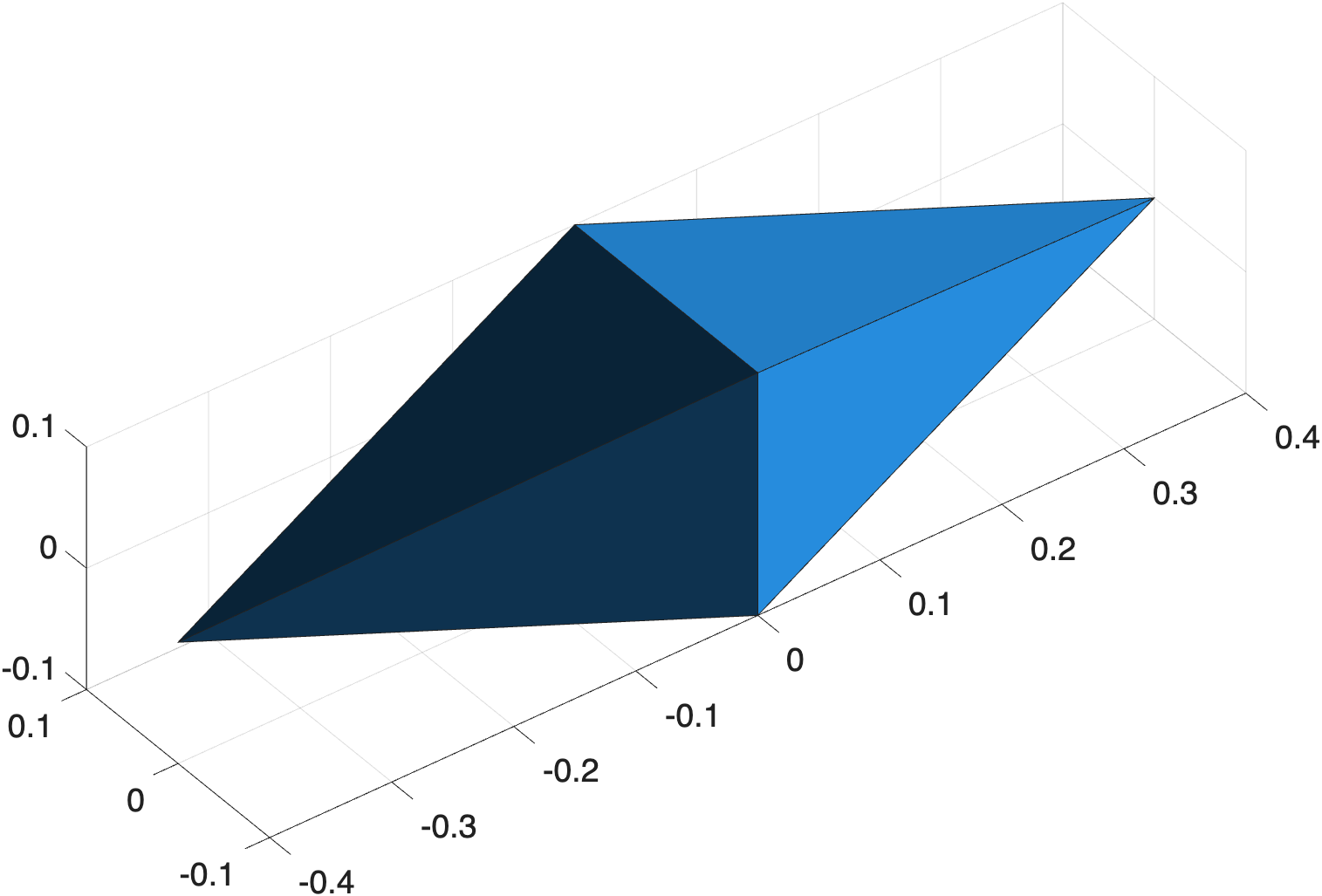

Diamond rotated 90° around the y-axis

You can chain multiple rotations together by passing the result of one rotation into the next:

V_rot = mmRotateSurfaceVertices(hp2.Vertices,'x',45);
hp2.Vertices = mmRotateSurfaceVertices(V_rot,'z',30);
axis equal

Challenge: How would you rotate the diamond 180° around the z-axis?

Rotate 180° around z

hp2.Vertices = mmRotateSurfaceVertices(hp2.Vertices,'z',180)

Under the Hood

Rotation is performed by multiplying the vertices by a rotation matrix — a 3×3 matrix built from sine and cosine values of the rotation angle. Unlike translation and scaling, rotation order matters when combining rotations around different axes.
