Volume Segmentation

Volume segmentation is just like Image Segmentation, but in 3D: instead of just segmenting neighboring pixels, you also segment voxels from adjacent image slices.

Segmentation allows you to isolate specific anatomical structures or features within medical images, such as organs, tumors, or blood vessels, by identifying and labeling voxels that belong to each region of interest. Once a structure is segmented, you can measure its volume, create 3D surface models for visualization, or use it as a mask for further analysis.

Example: Bubbles

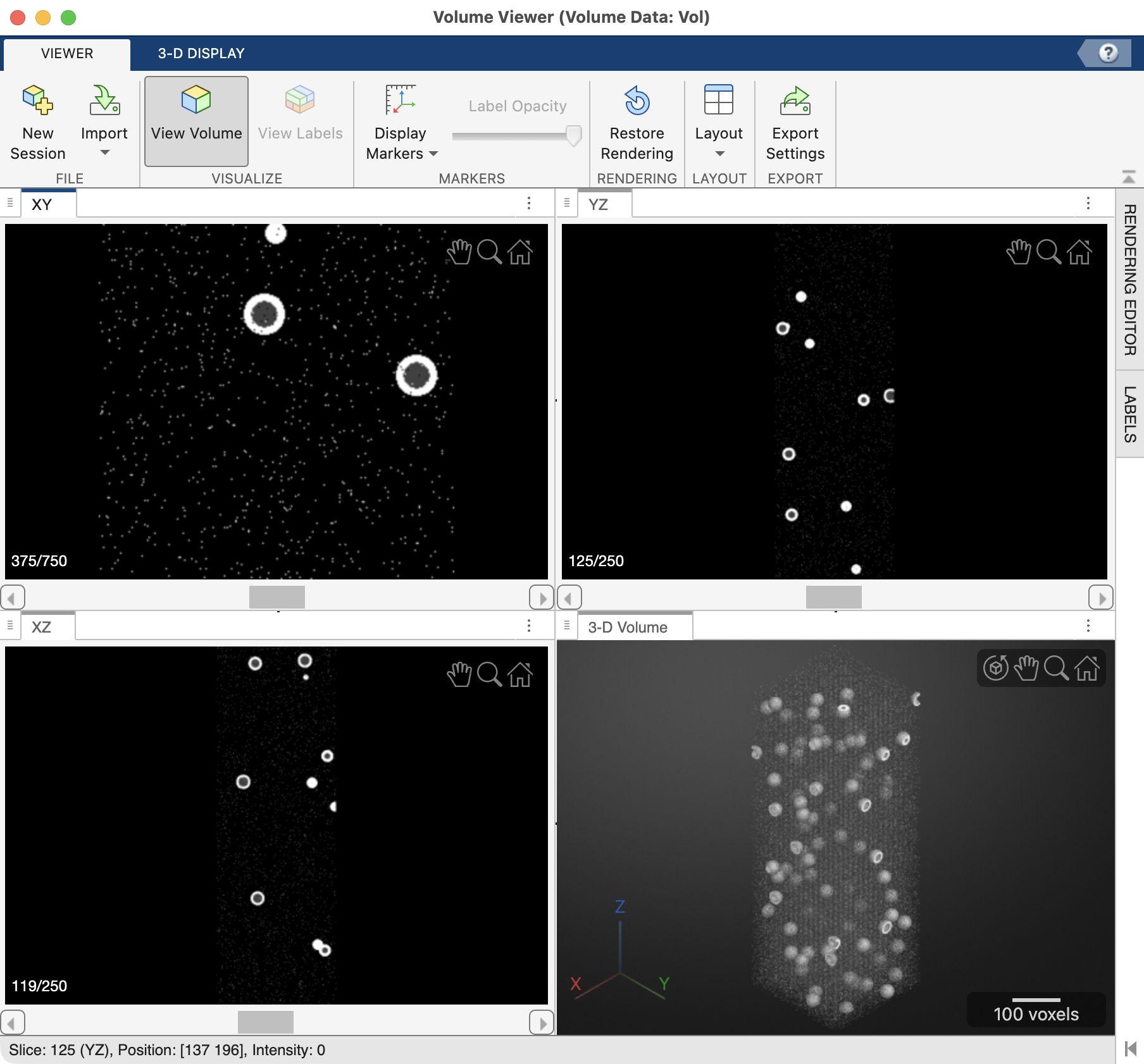

The preprocessing and thresholding steps for 3D volumes are very similar to the steps we used for 2D segmentation. Consider the following volume:

mmSetUnitDataFolder(3) % set unit 3 data folder
load("bubbles.mat","Vol")
volumeViewer(Vol)

We can segment the bubbles in the volume using the following steps:

medVol = medfilt3(Vol); % apply median filter to remove background noise
Mask = imbinarize(medVol); % threshold using default settings

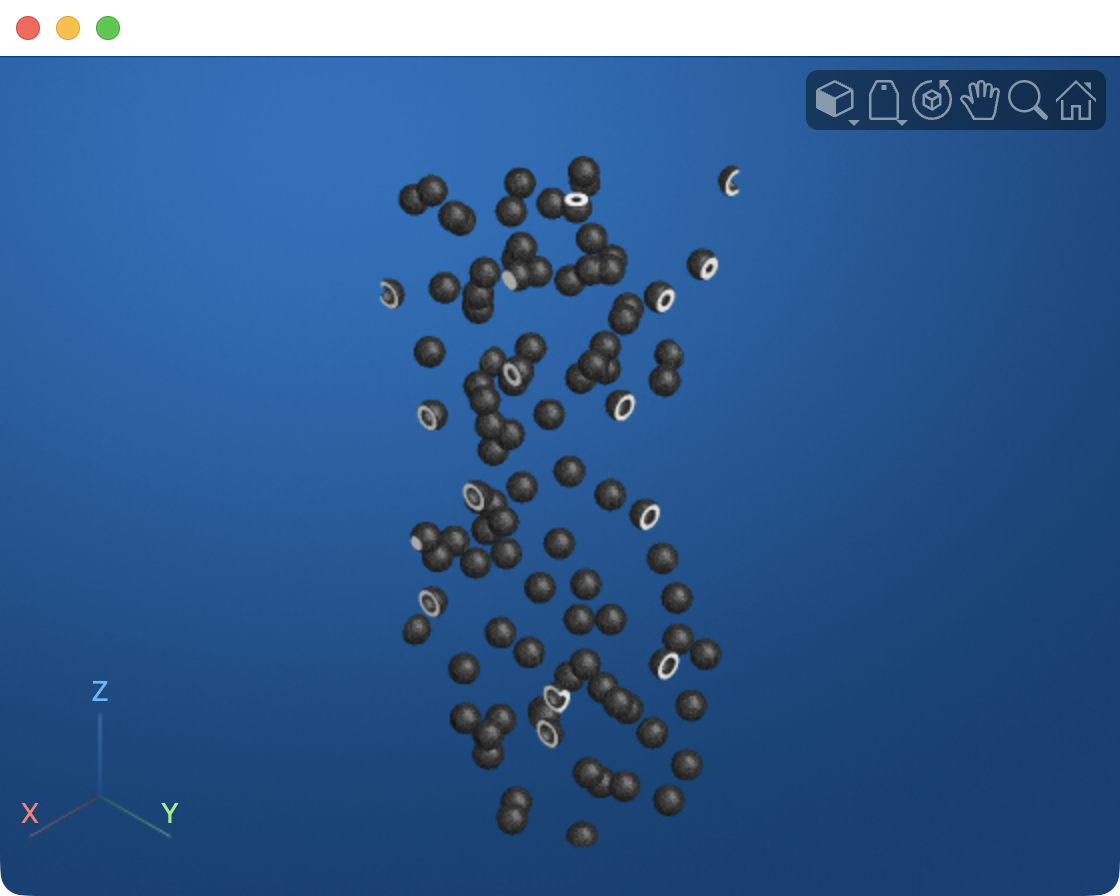

volshow(Mask,RenderingStyle="Isosurface") % render mask

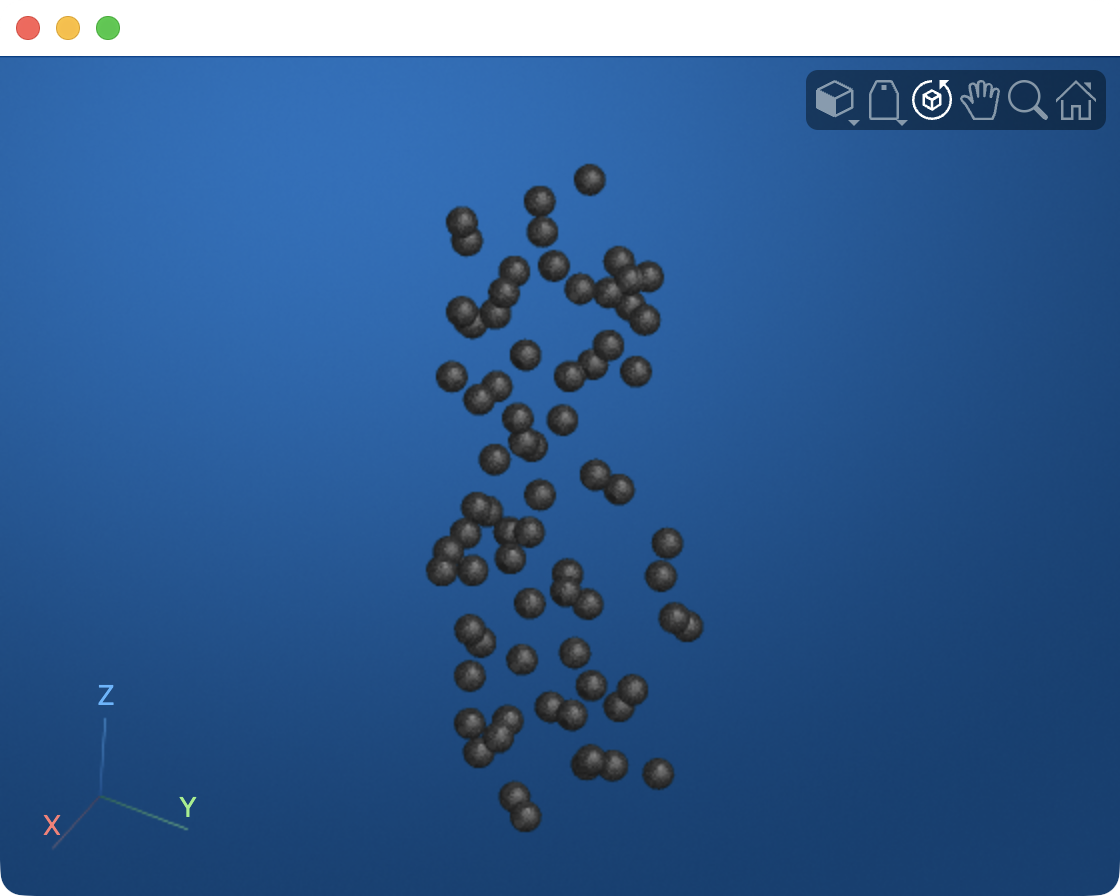

We can then apply the same morphological operations to clean up the mask…

Mask = imfill(Mask,"holes"); % fill interiors of bubbles
Mask = imclearborder(Mask); % remove bubbles touching edges of Volume
volshow(Mask,RenderingStyle="Isosurface")

…and to separate touching bubbles.

waterMask = mmGetWatershed(Mask,[3 1]); % apply watershed transformation

The mmGetWatershed function applies the watershed transform to the inputted Mask. The second input of [3 1] means the transformation is run twice, first with a Regional Minima pixel size of 3, followed by a pixel size of 1. Often watershed transforms work best with sequential calls.

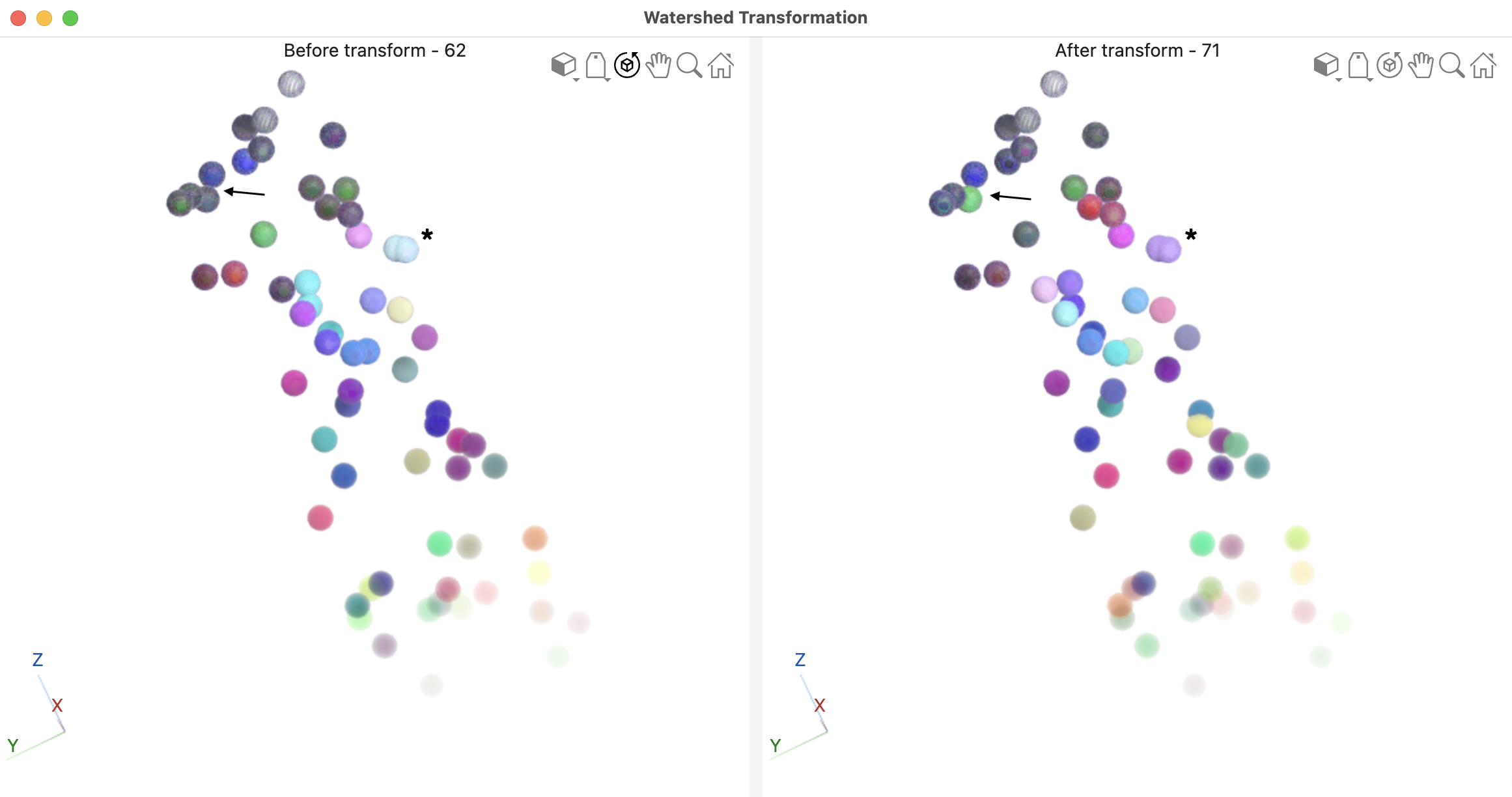

Render of the mask before and after the Watershed Transform. For these renders, we first convert the masks into label maps where each individual bubble has its own numeric label. In the label map before the watershed transform, there are 62 individual bubbles, including several fused bubbles. Fused bubbles here have the same color (see arrow and asterisk). In the label map after the transform, there are 71 bubbles and only one fused bubble remaining. Here the arrow points to an increased number of colors which indicates an increased number of separated bubbles. Whereas, the asterisk indicates a fused bubble which has the same color throughout. Note, this is the same fused bubble from the "Before" render, but its color has changed because its numeric label, which changed because there are an increase in the number unfused bubbles, shifting the labeling scheme for each bubble in the new label map.

Code to create the above Watershed Comparison Plot

To verify we separated touching bubbles using the watershed transform, we transform the masks to label maps, where each bubble in the has a unique numeric label. In this label map, bubbles adjacent to each other tend to have adjacent numeric labels. Using volshow, we render the masks with the ColorMap set to colorcube — a randomized color map that assigns a different color to adjacent lookup values. This allows us to color nearby bubbles separate colors.

% Create Label Maps
[maskL, countMask] = bwlabeln(Mask); % create label map from mask
[waterL, countWater] = bwlabeln(waterMask); % create label map from watershed mask

% figure with grid layout
fig = uifigure(Name="Watershed Transformation",WindowStyle="normal"); % create figure to hold viewers
g = uigridlayout(fig,[1 2],Padding=[0 0 0 0]); % like tiledlayout, but for uifigures. 1x2 tiles

% render the before transform volume
hvr1 = viewer3d(parent=g, ... % add to first grid
    BackgroundColor="white", ... % white background
    BackgroundGradient="off", ... % no gradient
    CameraZoom=1, ...
    Title=sprintf("Before transform - %d",countMask)); % set background color to white and turn off gradient
volshow(maskL, ... % volume before transform
    Parent=hvr1, ... % display in first viewer3D
    Colormap=colorcube, ... % random colors
    RenderingStyle="CinematicRendering")

% render the after transform volume
hvr2 = viewer3d(parent=g, ... % add to second grid
    BackgroundColor="white", ... % white background
    BackgroundGradient="off", ... % no gradient
    CameraZoom=1, ...
    Title=sprintf("After transform - %d",countWater));
volshow(waterL, ... % volume after transform
    Parent=hvr2, ... % display in second viewer3D
    Colormap=colorcube, ... % random colors
    RenderingStyle="CinematicRendering")

Region Properties

Finally, we can calculate the properties of the segmented bubbles using the function regionprops3

rp = regionprops3(waterMask)

rp =

  71×3 table

    Volume             Centroid                                BoundingBox
    ______    __________________________    __________________________________________________

    14002     82.997    234.98    16.988     68.5    220.5      2.5       29       29       29
    14008        195       134    19.997    180.5    119.5      5.5       29       29       29
    13684     114.04    170.69    21.995     99.5    156.5      7.5       29       29       29

      :                   :                                         :

    14002     185.01    117.01       721    170.5    102.5    706.5       29       29       29
    14015     151.01    95.005       727    136.5     80.5    712.5       29       29       29
    13987     227.99    49.003       733    213.5     34.5    718.5       29       29       29

rp has 71 rows: one row for each bubble.

histogram(rp.Volume,20)

Histogram of bubble volumes

A histogram of the bubble volumes easily identifies the fused bubble, which has a volume nearly twice the average bubble volume.

We can exclude this volume from further analysis using a simple logical operation:

la = rp.Volume < 1.6e4; %  only volumes below cut-off
figure;
histogram(rp.Volume(la))
xlabel("Volume (vox^3)")
set(gca,"FontSize",18)

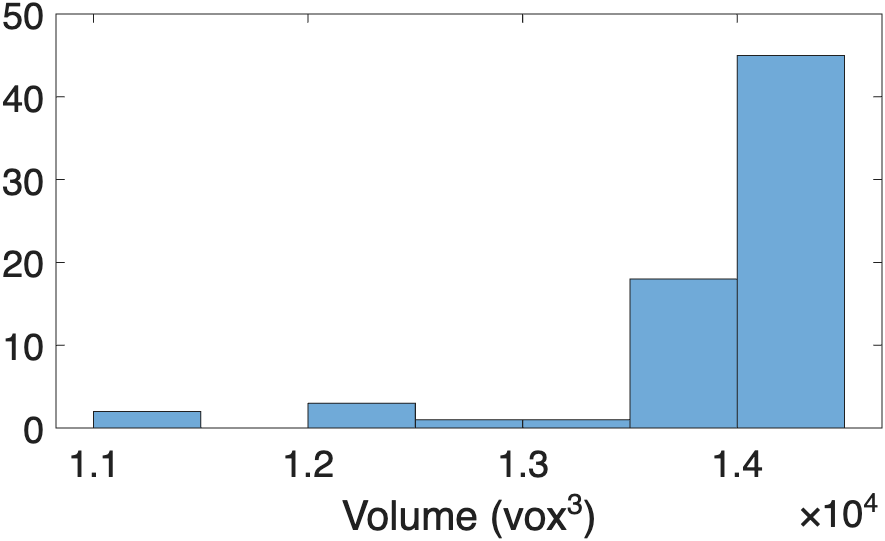

Histogram of only non-fused bubble volumes

Label Maps

Often when segmenting, it is convenient to create label maps, instead of binary arrays. This is especially true when the segmentation occurs sequentially, or when it is important to maintain separate labels for a segment, such as for left and right kidneys.

Consider the following label map, 'shapes3D.mat'(1), which loads as the variable Vol.

1. The volume, 'shapes3D.mat' is stored as a MATLAB .mat file and can be found in the Unit 3 data folder.

clearvars
mmSetUnitDataFolder(3) % switch to the Unit 3 Folder
load('shapes3D.mat','Vol'); % load volume as Vol

size(Vol)

 ans =
   318   318   159

class(Vol)

ans =
    'uint8'

As you can see the label map is a 318x318x159 uint8 volume.

imhist(Vol)

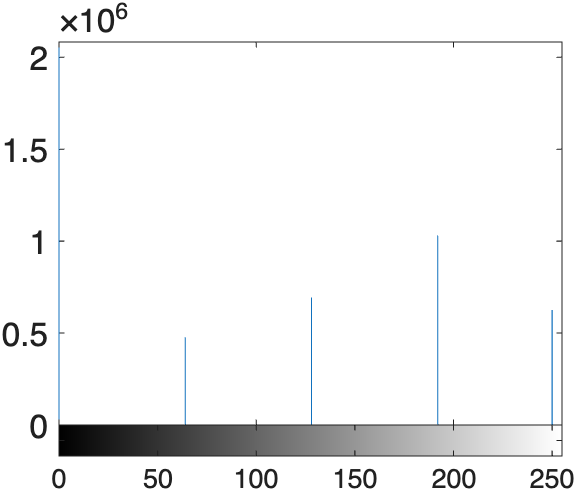

As shown in the histogram, the label map only contains 5 different intensity values (0 plus four more values).

We can determine the intensity values in Vol using the unique function

vals = unique(Vol(:)); % unique values

vals =

  5×1 uint8 column vector

     0
    64
   128
   192
   250

A volume render reveals the label map has four embedded shapes of differing intensities.

volumeViewer(Vol) % render Vol

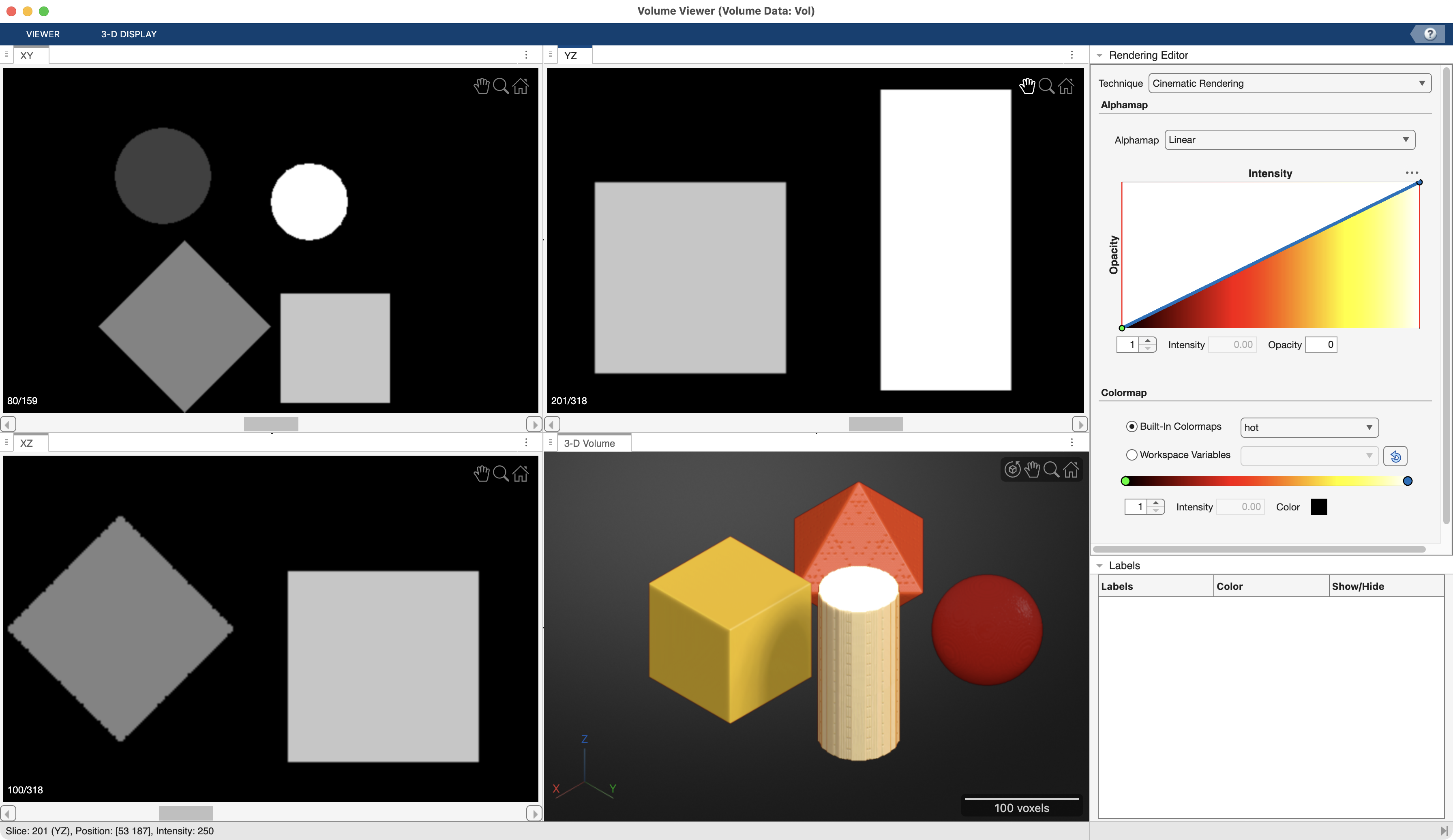

Volume Render of label map containing multiple 3D shapes. Here we use the volumeViewer app to render the volume using the "Cinematic Rendering" setting and the "hot" colormap. As you can see in the 3-D volume panel, there are four embedded shapes in the volume: a Cylinder, a Diamond, a Cube, and a Sphere. Each shape comprises a uniform set of intensity values, which is why each shape is rendered in a different hot pseudocolor in the 3D view and in differing shades of gray in the cross-sectional orthogonal views. You can review the intensity values by moving the mouse pointer over a shape in any of the orthogonal views (it doesn't work in the 3D view).

Segmenting out one shape

Our label map contains only 5 intensity values: a background intensity of 0 plus four different label values, which are segregated by shape.

Shape	Intensity
Background	0
Sphere	64
Diamond	128
Cube	192
Cylinder	250

If we want to process a single shape, we can easily index out the shape using a logical operation. For example, to index out the sphere, we just need the following logical operation:

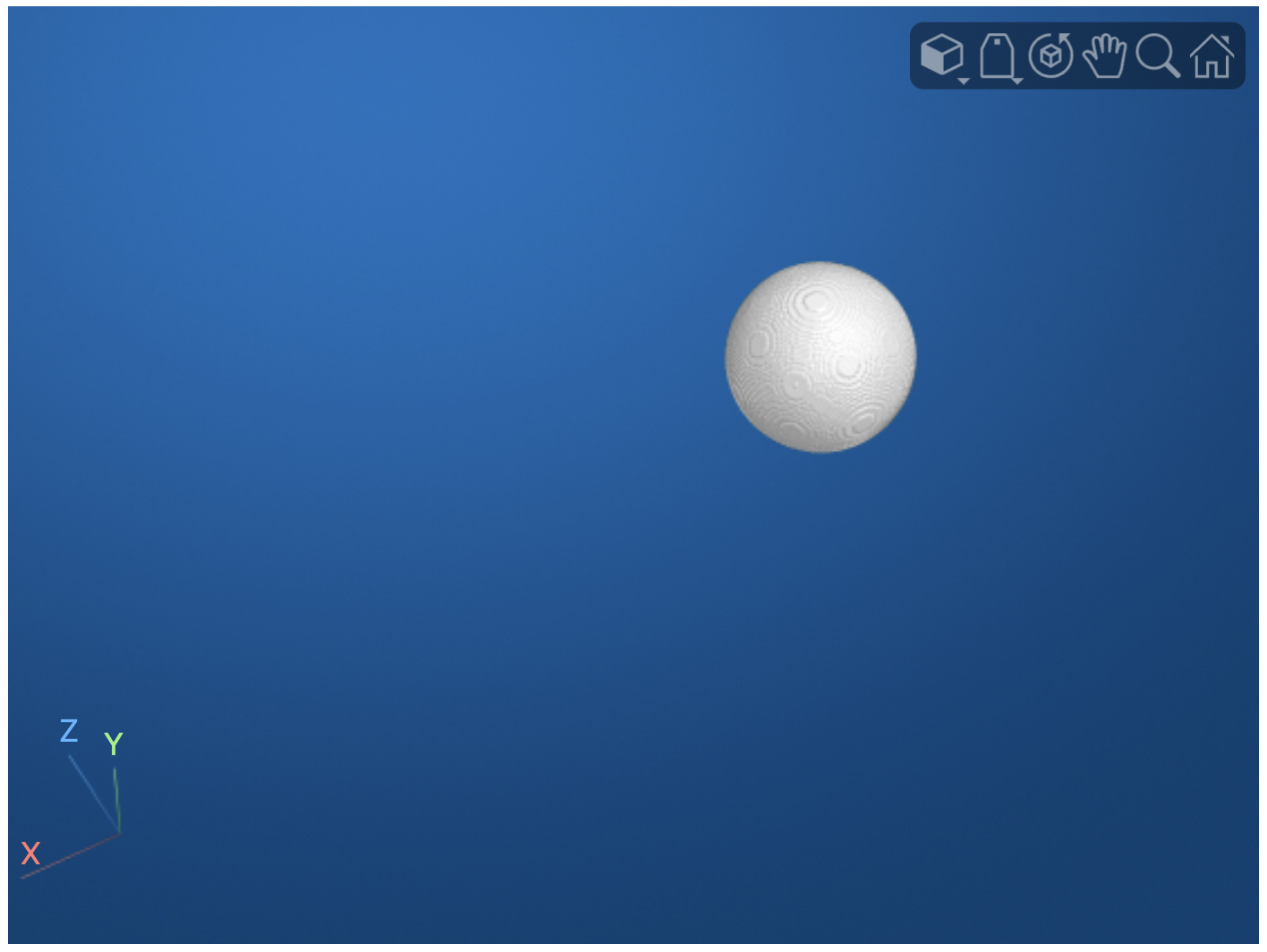

Mask = Vol == 64; % match intensity of 64
volshow(Mask)

Mask is a logical array where the sphere voxel values are all logical trues.

Or, if we want both the cube and the cylinder, we could use this logical operation

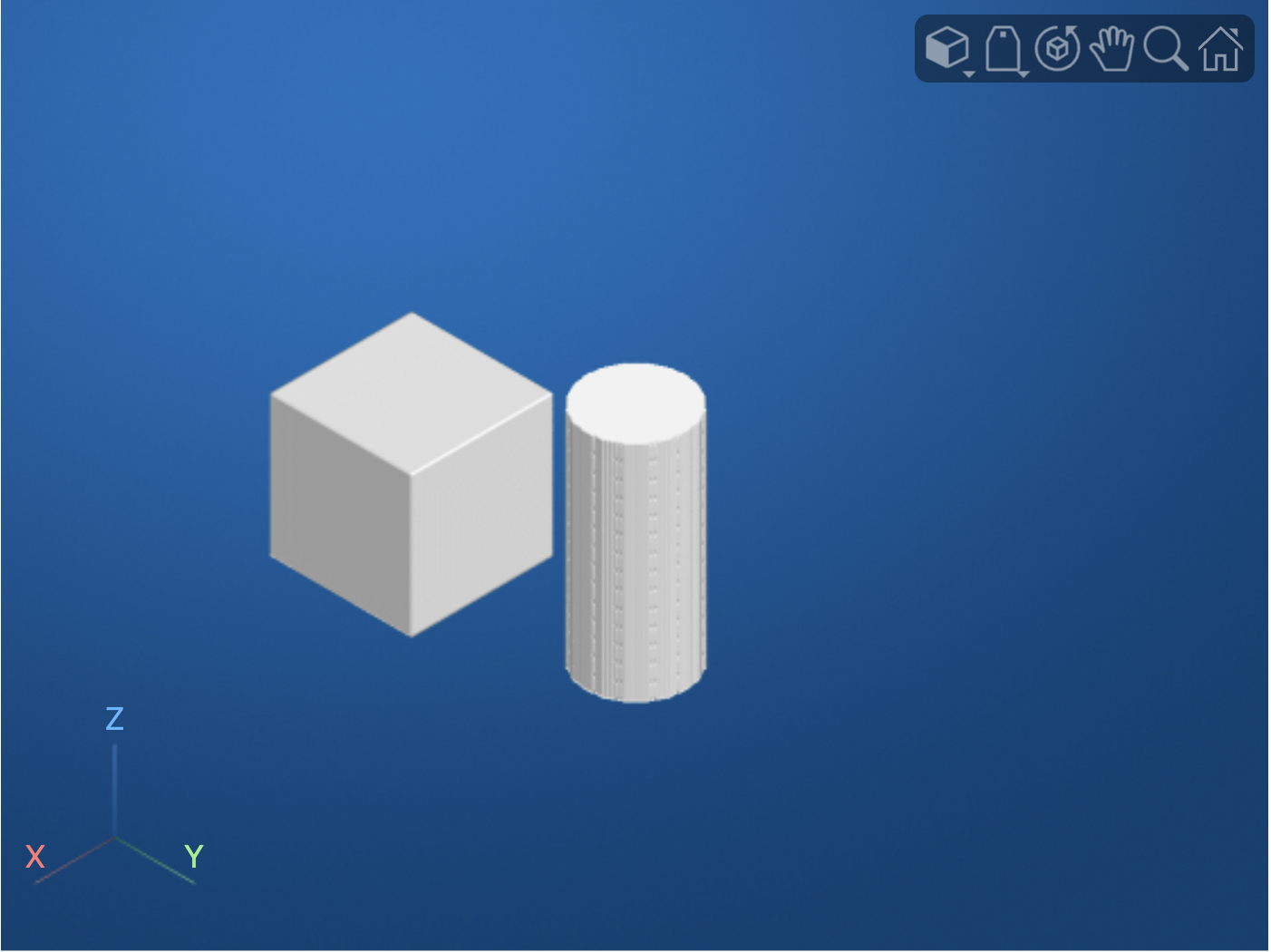

Mask = Vol > 128;

Here, Mask is a logical array, both the cube and cylinder voxel values consist solely of logical trues.

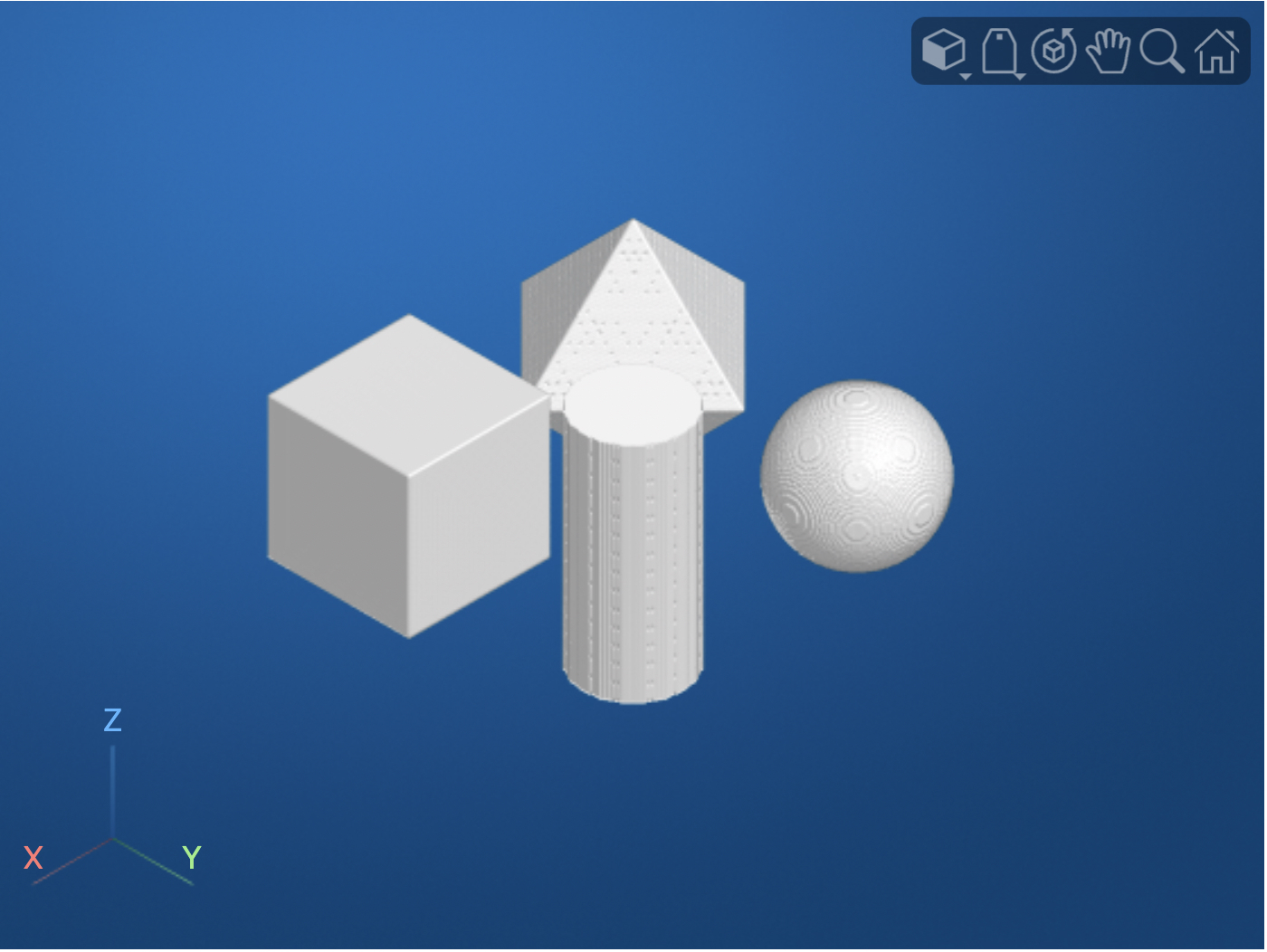

Type-casting the volume to a logical array segments all the shapes to logical trues (since all intensity values greater than zero are contained within one of the four shapes).

Mask = logical(Vol);
volshow(Mask)

Here, all shape intensity values are logical trues.

Region Properties

We can calculate the region properties of the shapes using the regionprops3 function

rp = regionprops3(Mask)

rp =

  4×3 table

      Volume               Centroid                                BoundingBox
    __________    __________________________    __________________________________________________

    6.9387e+05    80.001    80.001        80      0.5      0.5      0.5      159      159      159
    6.2602e+05    195.17    195.17        80    159.5    159.5      0.5       71       71      159
    1.0303e+06       219        60        60    168.5      9.5      9.5      101      101      101
    4.7792e+05        60       219        60     11.5    170.5     11.5       97       97       97

We get four rows in the region properties table, rp, because there are four shapes in Mask.

If we want a little clarity on which properties belong to which shapes, we can first convert the label map Vol to a categorical array and then calculate the properties:

volCat = categorical(Vol,[64 128 192 250],["Sphere" "Diamond" "Cube" "Cylinder"]);
rp = regionprops3(volCat,Vol,["Volume" "Centroid" "MaxIntensity"])

rp =

  4×4 table

    LabelName       Volume               Centroid             MaxIntensity
    __________    __________    __________________________    ____________

    "Sphere"      4.7792e+05        60       219        60         64
    "Diamond"     6.9387e+05    80.001    80.001        80        128
    "Cube"        1.0303e+06       219        60        60        192
    "Cylinder"    6.2602e+05    195.17    195.17        80        250

Now, the region properties table, rp, has a column LabelName which can be used to match the Shape to the property.
