Automated Segmentation using Total Segmentator

Total Segmentator is a 3D Slicer extension for fully automatic whole body CT segmentation using the TotalSegmentator AI model. Computation time is less than one minute.

Required extensions

  • TotalSegmentator
  • PyTorch

Pytorch

img-name

PyTorch is a python library for machine learning. Slicer uses this library to run Total Segmentator. Sometimes, this library needs to be updated to be compatible with the latest version of Total Segmentator.

The latest version of Total Segmentator requires a version Pytorch greater than 2.0. Bring up the PyTorch Utils module to check what version of PyTorch you have installed.

img-name

img-name

If the Torch version is 2.2.2 or greater, you should be good to go.

If your Torch version is < 2.0

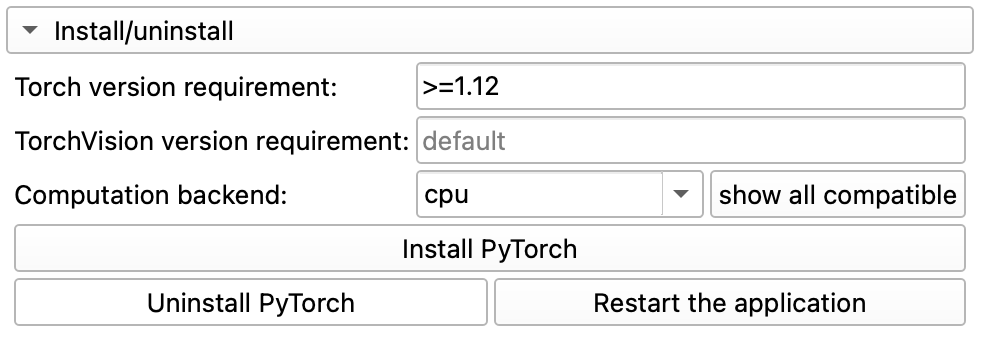

  1. Uninstall PyTorch
  2. Restart the application
  3. Bring up PyTorch Utils again.
  4. Set the Torch version requirement to: >=1.12
  5. If you have a Mac or and AMD Windows machine, set the Computation backend to CPU. Otherwise, if you have a NVIDIA graphics card, leave as automatic
  6. Install PyTorch

img-name

Total Segmentator Module

For this example, we will use the CTChest volume from the Sample Data module. Load that volume into Slicer

Bring up the Total Segmentator module

img-name

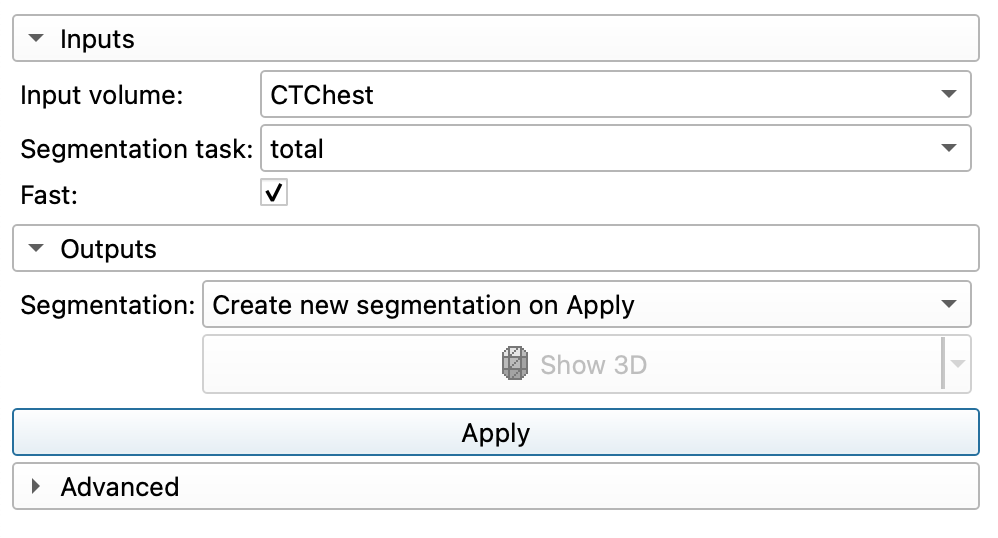

  1. Set the Input volume to CTChest
  2. Set the Segmentation task: to total
  3. Check Fast on
  4. Create new segmentation on Apply
  5. Click Apply

img-name

  • You may get a notification that certain python items are being installed. Just wait.
  • You should get a notification that module is "Creating segmentations with the TotalSegmentator AI". Just wait.
  • Just wait.

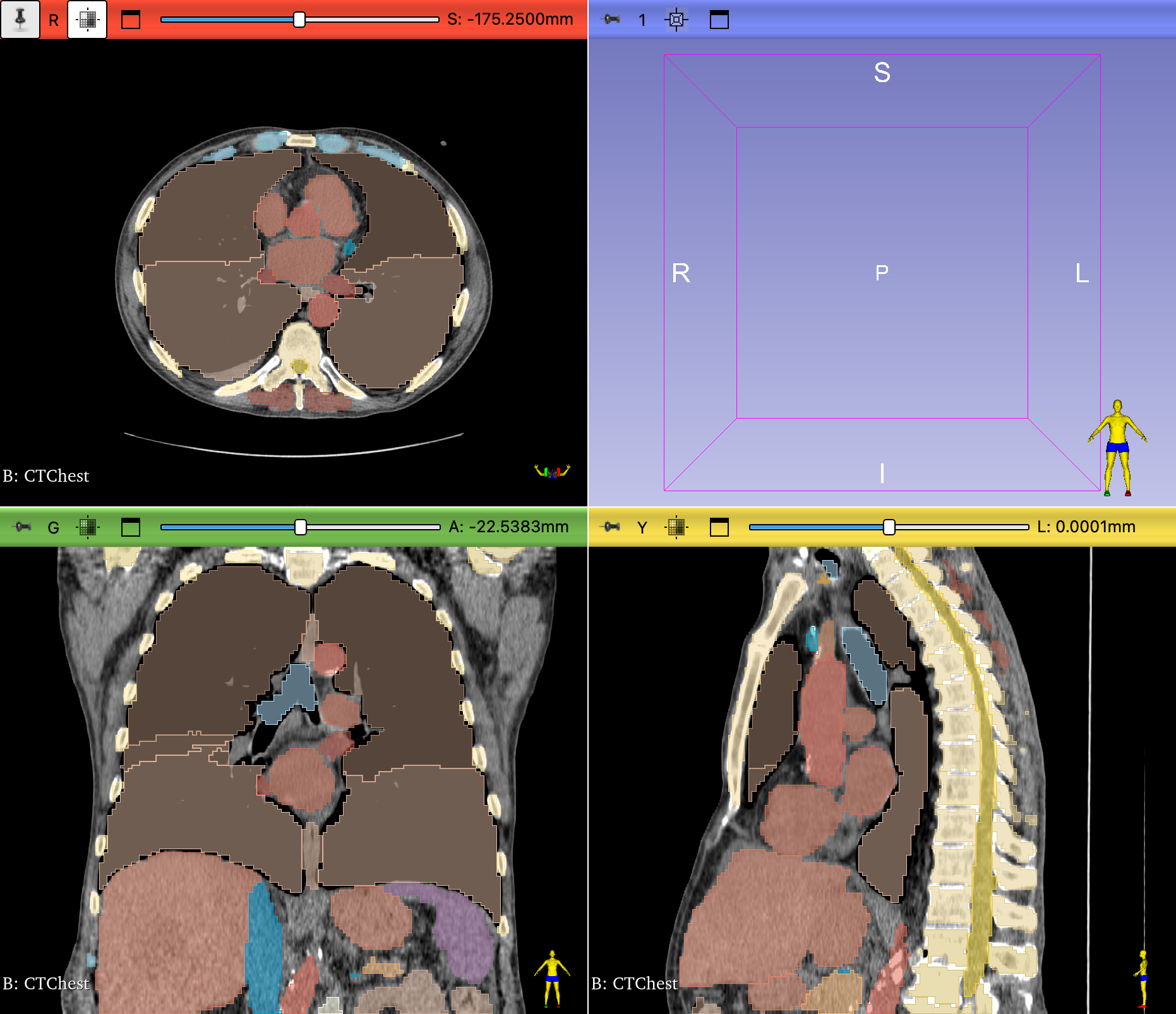

Finally, you should get some segmentations.

img-name

Review segmentations

Show the Segmentations in 3D

  1. Switch to the Segmentation Editor
  2. Click on Show 3D

Hide some Segmentations

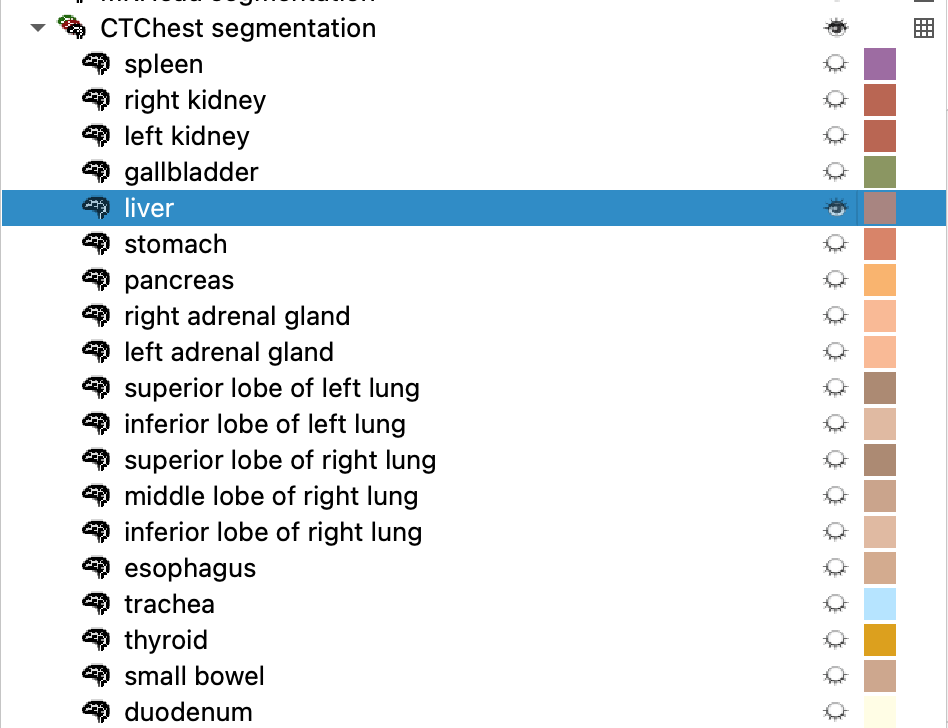

  1. Switch to the Data Module
  2. There should be a new Segmentation Node called "CTChest segmentation"
  3. There should be a lot of segmentations in that node.
  4. Select all of the Segmentations
  5. Right-Click and select "Hide" - the eye icons should close for all of the segmentations
  6. Selectively click open the eye icons of those segmentations that you want to visualize

img-name
