Tables

for Storing Data in a Spreadsheet-Like Format

"It's Business Time" - Flight of the Conchords, Business Time

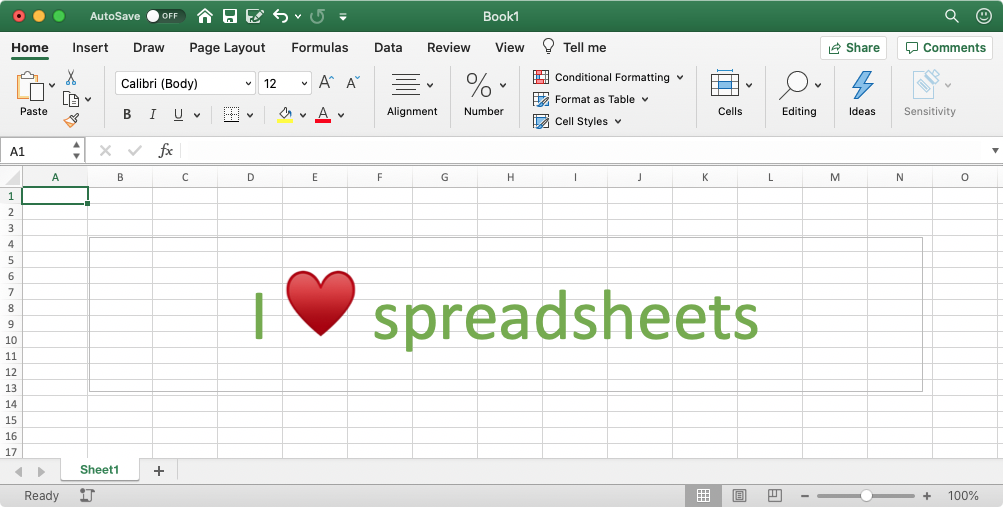

Excel spreadsheet with I Heart Spreadsheets on it

Overview

The Table class is the Excel spreadsheet of data types. This data type is designed to handle mixed, column-sorted, spreadsheet-type data. In a table, you can have one column data that contains a cell array and another column that contains numeric data. Table variables are intuitive to index and concatenate, have named column (and row) headers, and have many useful support functions such as a summary or varfun.

Learning Objectives

After completing this module, you should be able to:

Create your own table variables by using the table function
Use dot notation and indexing to access content from table variables
Use dot notation to access and modify table properties such as variable names.

Important Terminology

You should also be able to define the following terms as they refer to MATLAB programming:

table: a data type suitable for spreadsheet-type data
dot notation: adding a period after the name of a variable to access the fields of that variable
function handle: a data type that stores an association to a function, rather than the function itself

Important Functions

After reviewing this module, you should be able to use the following functions:

table: create a table variable
summary: print a summary of a table variable to the command window
sortrows: sort rows of the table
varfun: apply functions to columns in the table
height: number of table rows
groupsummary: Group summary computations

Relevant MATLAB Documentation

Table properties

Create a Table Variable

A table variable is basically a container for variables of other classes, which all must be column vectors (or matrices) that share the same number of rows

Let's first create some variables:

Create Some Data
LastName = {'Smith';'Johnson';'Williams';'Jones';'Brown'} % cell array
Age = [38;43;38;40;49] % numeric array
Height = [71;69;64;67;64] % numeric array
Weight = [176;163;131;133;119] % numeric array
BloodPressure = [124 93; 109 77; 125 83; 117 75; 122 80] % numeric array

We can examine the properties of these variables in the workspace or using the function whos:

Inspect variable properties using whos

  Name                  Size             Bytes  Class     Attributes

  Age                   5x1                 40  double
  BloodPressure         5x2                 80  double
  Height                5x1                 40  double
  LastName              5x1                620  cell
  Weight                5x1                 40  double

…Notice that all of these variables are column vectors with the same number of rows: We have one 5X1 cell array, the variable LastName. The rest of the variables are numeric arrays. BloodPressure is a 5X2 numeric array, while the rest of the variables are 5X1 numeric arrays.

Example: Creating a table variable using the table function

We can create a new table variable that combines all of these variables into a single variable called T using the table function.

Create table
T = table(Age, Height,Weight,BloodPressure,'RowNames',LastName)

Notice that the inputs into table are simply the variables that we want to combine, separated by commas. Each input becomes a column in the T variable, with the name of the inputted variable becoming the name of the column. In the MATLAB vernacular, these columns are known as "Variables". In this function call to table, we also input a paired input, 'RowNames', that sets the names of the rows in the table to the values found in the variable LastName. So, in this table, both the columns and the rows have headers. Note, I don't usually include row headers, but it is doable.

And the table created is as follows:

result

T =

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Smith       38     71        176       124     93
    Johnson     43     69        163       109     77
    Williams    38     64        131       125     83
    Jones       40     67        133       117     75
    Brown       49     64        119       122     80

Accessing Table Content

dot notation

Once we get the data into a table, it is very easy to access any individual column of data (aka field) using dot notation. In this notation, you type the name of the Table variable (T), followed by a period, followed by the name of the field that you want to access. For example, the following syntax accesses the 'Weight' field:

Access Data from Weight Column
T. Weight

result

…Note how using dot notation returns a numeric array (ans is a double). When you use dot notation, you are extracting the data type that is stored in the table variable from that column.

So, the best way to think of a table is a data type that combines and organizes other data types, like cell arrays and numeric arrays.

Pro-Tip: TAB for a list of table variables

After you type the name of the table variable, T, and the period, hit the "tab" key on the keyboard. A list of all available fields should pop up and then you can choose the one you want to access.

Try it now:

Type T. in the command window
Hit the tab key to reveal the pop-up menu
Use arrows to select the desired field
Hit Enter or TAB to select

dot notation illustration

Table Indexing

There are many ways to index a table. You can use parentheses or curly brackets. And inside those parentheses or curly brackets, you can use Index Values (numbers) or column and row headers (character arrays).

Parentheses Indexing

As expected, indexing with parentheses returns a smaller table.

Index Column from a Table Variable

The following syntax extracts the second column from T and returns a one-column table

T(:,2) % all rows, column 2

result

ans =

  5×1 table

                Weight
                ______

    Smith        176
    Johnson      163
    Williams     131
    Jones        133
    Brown        119

Since we indexed with the parentheses, the output is a smaller table with just the Weight column, but all row names included.

Index Row from a Table variable

The following syntax indexes out the 3rd and 4th rows from T.

T([3 4],:) % rows 3 & 4, all columns

result

ans =

              Age    Height    Weight    BloodPressure
              ___    ______    ______    _____________

    Jones      40     67        133       117     75
    Johnson    43     69        163       109     77

Again, since we used the parentheses, we get a smaller table variable with fewer rows, and all of the columns.

Curly Bracket indexing

You can also index a table variable with curly brackets. Similar to with cell arrays, if you index with curly brackets, you get the contents from within.

Example: Curly bracket indexing of a table

We can use Curly Brackets to extract data from a table, similar to dot notation:

T{:,2}

result

Since the second column is the 'Weight' column, we get the weight values. This is the same output as if we had used the dot notation: T.Weight

Although Dot notation is usually simpler than Curly Bracket to extract a column of data from a table, curly bracket indexing can be useful if you want to extract multiple columns worth of data from a table, like so:

Example: Indexing Multiple Columns using Curly brackets

Extract Data from both the Height and Weight columns
T{:,2:3}

result

…Note, this only works for columns that share the same data type (like numeric arrays)

Indexing by Column Name

Another useful feature for tables is the ability to index by the column or row headers to index out data.

Index by Column Header

The following syntax indexes T by the Weight Column:

T(:,'Weight')

result

ans =

  5×1 table

                Weight
                ______

    Smith        176
    Johnson      163
    Williams     131
    Jones        133
    Brown        119

…Since we indexed using parentheses, we get a smaller table with just one column ( ans is a 5X1 table).

Index by Row Header

Since we named our rows, we can use row names to index as well:

>>T({'Johnson','Jones'},:)
ans =
              Age    Height    Weight    BloodPressure
              ___    ______    ______    _____________

    Johnson    43     69        163       109     77
    Jones      40     67        133       117     75

…Again, we get a table, because we used parentheses to index. In this syntax, the curly brackets were used to concatenate into a cell array so we can index two row names.

Challenge: Table Indexing

Question 1Answer 1Question 2Answer 2Question 3Answer 3Question 4Answer 4Question 5Answer 5

Show the syntax to index T and get a smaller table with the just the first three rows in it.

Show the syntax to index T and get a smaller table with the just the first three rows in it.

To do this, you need to use parentheses, as follows

Index first three rows of T
T(1:3,:)

result

ans =

  3×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Smith       38       71       176       124     93
    Johnson     43       69       163       109     77
    Williams    38       64       131       125     83

Show the Syntax to return the data from the "BloodPressure" Column in T.

Show the Syntax to return the data from the "BloodPressure" Column in T**.

You simply use dot notation, as follows:

T.BloodPressure

result

Show the Syntax to return just the first column of data from the "BloodPressure" Column in T.

Show the Syntax to return just the first column of data from the "BloodPressure" Column in T.

 T.BloodPressure(:,1)

result

The way to think about this is that once you use dot notation, you are basically dealing with the contained variable. When we enter T.BloodPressure to access the BloodPressure column, we are basically now dealing with a numeric array. So, now we can index using the parentheses to access just the first column of the BloodPressure data, just as we would for any numeric array.

What does the following syntax return?

T(2,3)

Data type?
Number of Rows?
Number of Columns?

This syntax

result is a scalar table

T(2,3)

ans =

  table

              Weight
              ______

    Johnson     163

You get a scalar table: a table with just 1 data point.

How would you use Name indexing on T if you want Ms. Brown's Blood Pressure returned as a:

Table?
Numeric variable?

To return as a table, you would use the parentheses as follows:

T({'Brown'},{'BloodPressure'})

result

ans =

  table

            BloodPressure
            _____________

    Brown     122     80

And to return as a numeric variable, you would use the curly brackets:

T{{'Brown'},{'BloodPressure'}}

result

ans =

  122    80

Removing Table Content

Just as we can remove elements from arrays, we can remove columns from tables using the empty brackets.

For example, to remove the 'BloodPressure' column, we would use the following syntax:

Remove Column from Table Variable
T.BloodPressure = []

result

T =

  5×3 table

                Age    Height    Weight
                ___    ______    ______

    Smith       38       71       176
    Johnson     43       69       163
    Williams    38       64       131
    Jones       40       67       133
    Brown       49       64       119

…and the BloodPressure column is unceremoniously dumped.

But since we still have the numeric array BloodPressure in the workspace, we can easily add back the column using dot notation:

Add Column to Table Variable
T.BloodPressure = BloodPressure

result

T =

  5×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Smith       38       71       176       124     93
    Johnson     43       69       163       109     77
    Williams    38       64       131       125     83
    Jones       40       67       133       117     75
    Brown       49       64       119       122     80

Note

This syntax only works because BloodPressure is still a variable in the workspace and T is already a table variable. If T didn't already exist as a table, this syntax would instead create a structure array (See Structure Array Module).

Table Properties

Every table has a hidden field called Properties that contains the property values for the table. Properties include the names of each Column (VariableNames) and the name of each row (RowNames, optional). You can also store additional information in a table by storing it in the UserData field. UserData can contain any class of data, even another table.

Accessing the Properties using Dot Notation

Table properties, other than the "VariableNames" field, are often empty by default. You can see the properties of a table by using dot notation as follows:

Display table properties
T.Properties

result

ans =

             Description: ''
    VariableDescriptions: {}
           VariableUnits: {}
          DimensionNames: {'Row'  'Variable'}
                UserData: []
                RowNames: {5x1 cell}
           VariableNames: {'Age' 'Height'  'Weight'  'BloodPressure'}

…Notice that T.Properties returns a structure data type. Also, notice that this structure contains metadata fields that describe the table, such as the column headers ("VariableNames") and row headers ("RowNames"). There are also fields where you can add detailed descriptions and units of measure for each column.

Changing Properties using indexing and dot notation

Since the properties are a structure array, we can manipulate the data in this structure using dot notation. Notice that the "VariableNames" field is a cell array. So you can modify this array using dot notation and the syntax for cell arrays. For example, to change the column header 'BloodPressure' to 'BP', you can use the following syntax:

Change Column Name
T.Properties.VariableNames{end} = 'BP'

result

T =

  5×4 table

                Age    Height    Weight        BP
                ___    ______    ______    __________

    Smith       38       71       176      124     93
    Johnson     43       69       163      109     77
    Williams    38       64       131      125     83
    Jones       40       67       133      117     75
    Brown       49       64       119      122     80

Adding New Property data

You can also add new information to the table properties. Notice that there is a field for Variable Units. Use the following syntax to update this field:

Add Variable Units to Properties
T.Properties.VariableUnits = {'years','Inches','Pounds','Diastolic - Systolic'}

Viewing updated properties

To see updates to the Table properties, you need to explicitly call the Properties field as follows:

Display Table Properties
T.Properties

Result: table properties displayed

ans =

  TableProperties with properties:

             Description: ''
                UserData: []
          DimensionNames: {'Row'  'Variables'}
           VariableNames: {'Age'  'Height'  'Weight'  'BP'}
    VariableDescriptions: {}
           VariableUnits: {'years'  'Inches'  'Pounds'  'Diastolic - Systolic'}
      VariableContinuity: []
                RowNames: {5×1 cell}

…Now you can see all of the updates that were made to the table properties.

Useful Table Operations and Functions

MATLAB provides many useful functions for table variables.

Summary function

The summary function returns a statistical summary of the data in each column, including the min, median, and max. Note that the summary function does not return an output (i.e., ans is not populated). Instead, the result is "printed" to the command window.

Summary
summary(T)

Result: Summary Output

Variables:

    Age: 5x1 double
        Values:

            min       38
            median    40
            max       49

    Height: 5x1 double
        Values:

            min       64
            median    67
            max       71

    Weight: 5x1 double
        Values:

            min       119
            median    133
            max       176

    BloodPressure: 5x2 double
        Values:
                      BloodPressure_1    BloodPressure_2
                      _______________    _______________

            min       109                75
            median    122                80
            max       125                93

Height, Width, and Size functions

Sometimes you just want to know the number of rows in a table. The function height returns this value:

Example. Function height returns number of rows

height (T)

result

ans =

    5 % number of rows in table

And sometimes you just want to know the number of columns in a table. The function width intuitively returns the number of columns (or variables) in a table:

Example. Function width returns number of columns

Function: width
width(T)

result

ans =

    4 % number of columns

The function size returns both dimensions (or the specified the dimension), as we have seen with other variable types:

Example: size returns the dimensions of the table

Function: size
size(T)

result

ans =

    5     4 % 5 rows, 4 columns

Example: The second input into size determines which dimension to calculate the size

Remember, the second dimension means the number of columns, in MATLAB.

size(T,2) % return size of second dimension

ans =

    4 % four columns

Sortrows function

Organizing your data into a table greatly simplifies data analysis. For example, you can use the function sortrows to organize the table alphabetically by "RowName":

sortrows by row names

sortrows(T,'RowNames')

result

ans =

  5×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Brown       49       64       119       122     80
    Johnson     43       69       163       109     77
    Jones       40       67       133       117     75
    Smith       38       71       176       124     93
    Williams    38       64       131       125     83

We can also sort by column or by multiple columns. The following syntax sorts the table first by height, then by weight:

Sort rows by Height, then Weight

sortrows(T,{'Height','Weight'})

result

ans =

  5×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Brown       49       64       119       122     80
    Williams    38       64       131       125     83
    Jones       40       67       133       117     75
    Johnson     43       69       163       109     77
    Smith       38       71       176       124     93

…now the rows are sorted in ascending order by the height, followed by the weight.

Challenge: Table Functions

QuestionAnswer

What will you get if you typed: sortrows(T), without additional inputs?

What do you think would happen if you just typed: sortrows(T), without any additional inputs?

sortrows(T)

result

ans =

  5×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Williams    38       64       131       125     83
    Smith       38       71       176       124     93
    Jones       40       67       133       117     75
    Johnson     43       69       163       109     77
    Brown       49       64       119       122     80

The table is sorted by the first column, 'Age', and the output is assigned to the default variable ans.

Applying Functions to Variables

The varfun function is used to apply a function to multiple columns in a table. You can use varfun to quickly calculate the statistics for multiple columns. In contrast to the summary function, varfun returns a table data which can then be assigned to a new table variable (as opposed to just printing the result to the command window).

Using varfun to calculate the mean for all columns

The first input into varfun should be the function handle. Remember a function handle is just the function name preceded by the @ symbol. This basically means to pass the name of the function into another function.

Since we want to calculate the average of each column, we need to pass in the @mean function handle.

S = varfun(@mean,T)

result

S =

  1×4 table

    mean_Age    mean_Height    mean_Weight    mean_BloodPressure
    ________    ___________    ___________    __________________

      41.6          67           65.499         119.4     81.6

The result is a new table S with the means from the columns in T.

Notice that names of the columns in the new table S are prepended with the name of the function that was applied to the column, e.g. 'mean_age' is the average of the age column in T

This simple call to varfun, with no additional inputs, worked because all of the columns in T are numeric arrays. If the table T had been more complex (e.g. if some of the columns contained string arrays), then we would have needed more inputs to specify precisely which columns we wanted to apply the mean function.

Challenge: varfun

QuestionAnswerQuestion 2Answer 2

How would you calculate the standard deviation of the columns in T and assign the result to Sstd?

Sstd = varfun(@std,T)

Sstd =

  1×4 table

    std_Age    std_Height    std_Weight    std_BloodPressure
    _______    __________    __________    _________________

    4.6152       3.0822        23.975      6.5803    7.0569

and this syntax returns the last element in the array, which contains the letter o:

Review the varfun help page.

What input pair would you use to calculate the mean of just the height and weight columns in T?

S = varfun(@mean,T,'InputVariables',{'Height','Weight'})

result

S =

  1×2 table

    mean_Height    mean_Weight
    ___________    ___________

        67            144.4

Grouping Variables

Grouping Variables are used to group the rows of a table into different categories, allowing for statistical calculations based on category. For example, say you wanted to calculate the mean Weight and Blood Pressure for old and young people. To do this, you need a grouping variable that groups the rows into categories such as "old" or "not old". A grouping variable can be a cell, a boolean or even a numeric array.

Example: Adding a Grouping Variable to a table

In this example, we add a new logical array column called 'Old' to our table where TRUE indicates "old" and FALSE indicates "not old". As everyone knows, anything older than 39 is definitely old, so let's use the relational operation 'Age greater than 39' to create our new grouping variable as follows:

Age greater than 39 is True
T.Old = T.Age > 39

T =

  5×5 table

                Age    Height    Weight    BloodPressure     Old
                ___    ______    ______    _____________    _____

    Smith       38       71       176       124     93      false
    Johnson     43       69       163       109     77      true
    Williams    38       64       131       125     83      false
    Jones       40       67       133       117     75      true
    Brown       49       64       119       122     80      true

Now we have a new column in T called 'Old' and in this column, there is a true for any row where the age is greater than 39 and false everywhere else.

We can use the "Old" column as a grouping variable in the function varfun:

Example: Using a Grouping Variable in varfun

Set Grouping Variable to Old
S = varfun(@mean, T,'GroupingVariables','Old')

S =

  2×6 table

    Old     GroupCount    mean_Age    mean_Height    mean_Weight    mean_BloodPressure
    _____    __________    ________    ___________    ___________    __________________

    false        2            38           67.5          153.5        124.5        88
    true         3            44         66.667         138.33          116    77.333

After setting the grouping variable to "Old", varfun now returns a new table (S) with two rows: one for each category in the Grouping variable (false or true). The first row contains the average of all rows in T that have a false in the 'Old' column, while the second row contains the average of all rows in T that have a true in the 'Old' column.

Also notice that:

Two new columns have been added to the S table: "Old" and "GroupCount"
The column "Old" contains the unique values (or categories) found in the grouping variable from T: false and true.
The column "GroupCount" contains the counts for each category. In table T there were 2 "not-olds" and 3 "olds"

Group Summary

The function groupsummary is designed from the ground up to calculate statistics from table variables using grouping variables.

The most basic function call to groupsummary is as follows:

Function groupsummary
 G = groupsummary(T,"Old")

result

G =

  2×2 table

     Old     GroupCount
    _____    __________

    false        2
    true         3

…this call simply computes a count of the different groups.

However, groupsummary becomes really useful when you want to calculate the statistics on the different columns, as follows:

Example: Calculate group averages

calculate mean
G = groupsummary(T, "Old","mean")

result

G =

  2×6 table

    Old     GroupCount    mean_Age    mean_Height    mean_Weight    mean_BloodPressure
    _____    __________    ________    ___________    ___________    __________________

    false        2            38           67.5          153.5        124.5        88
    true         3            44         66.667         138.33          116    77.333

…Here we get the mean for each column. Note, this only works because all of the other columns in the table are numeric.

You can also calculate multiple statistics, like mean and standard deviation, and specify the columns you want to calculate

Example: Calculate mean and standard deviation for Height

If you want to calculate both the mean and the standard deviation, but just for the "Height" column, you can use the following function call.

G = groupsummary(T, "Old",["mean","std"], "Height")

Notice that we input a string array to indicate the statistics that we want to perform.

result

G =

  2×4 table

    Old     GroupCount    mean_Height    std_Height
    _____    __________    ___________    __________

    false        2             67.5         4.9497
    true         3           66.667         2.5166

Now we get two stats columns: One for the mean and one for the standard deviation. This is incredibly powerful for a single function call. To get the equivalent results using varfun, we would need at least two function calls and have to create two separate output variables, which would then need to be concatenated in some fashion.

There are of course many ways that you can call groupsummary. Read the details on the Mathworks groupsummary documentation page.

CHALLENGE: groupsummary

Question 1Answer 1Question 2Answer 2

Use groupsummary to calculate the median and range for the height and weight columns in T. Use "Old" as a grouping variable.

Calc Median and Range for Height and Weight
S = groupsummary(T,'Old',["median" "range"], ["Height" "Weight"])

result

S =

  2×6 table

    Old     GroupCount    median_Height    range_Height    median_Weight    range_Weight
    _____    __________    _____________    ____________    _____________    ____________

    false        2             67.5              7              153.5             45
    true         3               67              5                133             44

Do you have to include a grouping variable? What happens if you use the empty brackets ([]) in the grouping variable position?

Empty Brackets for Grouping Var
S = groupsummary(T,[],["median" "range"], ["Height" "Weight"])

result

S =

  1×5 table

    GroupCount    median_Height    range_Height    median_Weight    range_Weight
    __________    _____________    ____________    _____________    ____________

        5              67               7               133              57

…If we don't indicate a Grouping variable (by input the empty square brackets), we simply get the result for the full column.

Mathematical Operations

In addition to using specialized functions to analyze our data, we can perform mathematical operations on the columns of table variables by combining dot notation and table indexing. Consider the following example:

Converting Pounds to Kilos

In T, the "Weight" column contains the weight of each person in pounds. For scientific analysis, weight is often recorded in kilograms. The conversion factor from pounds to kilograms is as follows:

1 pound (lb) is equal to 0.45359237 kilograms (kg).

Taking this into consideration, we can convert our "Weight" Column to kilograms using the following syntax:

Example: Table Math

Convert pounds to kilos
T.Weight_k = T.Weight * 0.45359237

T =

  5×5 table

                Age    Height    Weight    BloodPressure    Weight_k
                ___    ______    ______    _____________    ________

    Smith       38       71       176       124     93       79.832
    Johnson     43       69       163       109     77       73.936
    Williams    38       64       131       125     83       59.421
    Jones       40       67       133       117     75       60.328
    Brown       49       64       119       122     80       53.977

…This syntax adds a new column called "Weight_k" with the properly converted values in kilograms

However, sometimes you don't want to clutter up your table. If you want to keep the same number of columns, you can simply overwrite the Weight column with the converted values, using the following syntax.

Overwrite Weight Column
T.Weight = T.Weight * 0.45359237

result

T =

  5×5 table

                Age    Height    Weight    BloodPressure    Weight_k
                ___    ______    ______    _____________    ________

    Smith       38       71      79.832     124     93       79.832
    Johnson     43       69      73.936     109     77       73.936
    Williams    38       64      59.421     125     83       59.421
    Jones       40       67      60.328     117     75       60.328
    Brown       49       64      53.977     122     80       53.977

Then, we could remove the "Weight_k" column and update the "VariableUnits" property field as follows:

Update Table
T.Weight_k = []; % remove Weight_k column
T.Properties.VariableUnits{3} = 'kilograms' % add units to properties

result

T =

  5×4 table

                Age    Height    Weight    BloodPressure
                ___    ______    ______    _____________

    Smith       38       71      79.832     124     93
    Johnson     43       69      73.936     109     77
    Williams    38       64      59.421     125     83
    Jones       40       67      60.328     117     75
    Brown       49       64      53.977     122     80

Module over
